2016-10-08 - Four Supercomputers

** Updated on February 7, 2017 ** Hopefully, if all goes well, I will soon be the owner of four 1980's (mini-)supercomputers, which have been donated by a professor at Stanford University. I've had a shipping company collect and crate these, they've been shipped across the Atlantic, and are currently sitting in a warehouse in Rotterdam. They've just cleared customs, I paid the duties and import fees, and am now awaiting word on the delivery date.

** Updated on February 7, 2017 ** Hopefully, if all goes well, I will soon be the owner of four 1980's (mini-)supercomputers, which have been donated by a professor at Stanford University. I've had a shipping company collect and crate these, they've been shipped across the Atlantic, and are currently sitting in a warehouse in Rotterdam. They've just cleared customs, I paid the duties and import fees, and am now awaiting word on the delivery date.

Meanwhile, any and all pointers to technical documentation about any of these is most welcome!

1. & 2. A Convex C1 XP and C1 XL (1986)

The first two systems are a Convex C1 XP and a Convex C1 XL, both introduced in 1986 as follow-ons to the original C1 (1984).

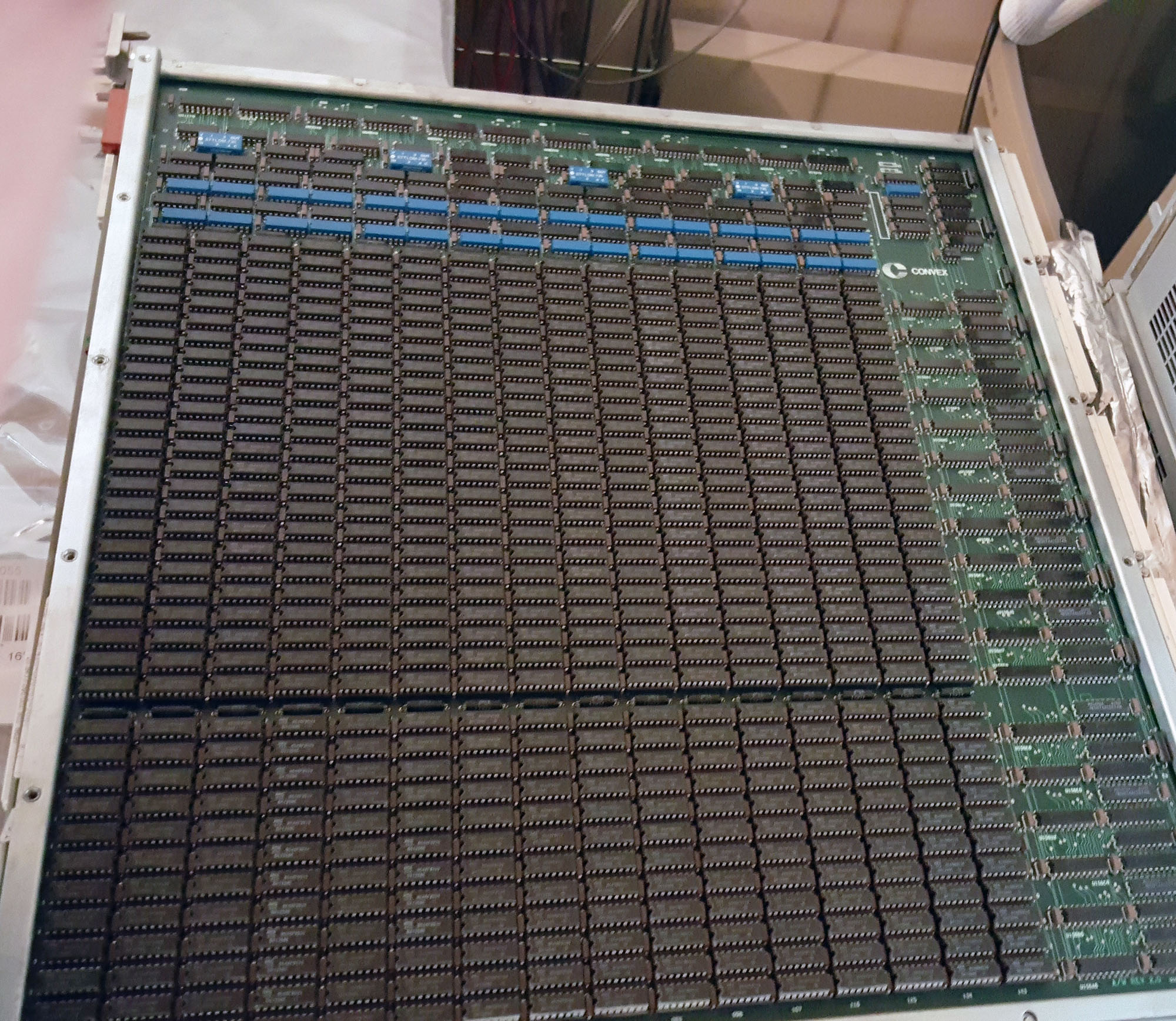

The C1 consists of a high performance 64-bit custom designed CPU with integrated scalar/vector functions built from 8k CMOS gate arrays. It supports 4 GB of virtual memory and up to 1 GB or physical memory. Capable of delivering 40 MFLOPS (peak). Runs an enhanced version of Berkeley UNIX, with VAX/VMS DCL command language compatibility; DECnet; VAX/EDT compatible text editor; VMS compatible job batch system; Fortran language extensions compatible with VAX and Cray Fortran.

An early Convex system like this has been at the top of my wishlist for a long time, particularly for its special UNIX with VAX/VMS compatibility features, and I never thought the day would come close where I could own one.

Information on the C1 XP and XL is sketchy, but this article provides some information: https://www.computer.org/csdl/mags/co/1986/12/01663131.pdf; apparently, the XL is an entry-level supercomputer (US$350,000 = US$770,000 today) with up to 64 MB of main memory. The XP was an addition to the top end, available for US$475,000 (US$1,050,000 in today's dollars). That article also reports that the XP would be available in 2- and 4-cpu configurations, but according to Convex alumni I spoke to this never materialized until the C2 was released.

According to Tom Jones' "Engineering Design of the Convex C2", the C1-XL was a renaming of the original C1, and the C1-XP was a C1 with the addition of scalar floating-point hardware, implemented in 20Kgate CMOS chips, as well as increased memory capacity (1GB). The C1-XL seems to be more than just a renaming though, at the very least it's a repackaging into a smaller card-cage, with less I/O and memory capacity.

I'm getting a lot of help from people on the ex-Convex mailing list, as well as from the person I'm acquiring it from, in identifying what I have. There should have been an I/O cabinet with both the XL and the XP, but the systems I'm getting only come with a single I/O cabinet. It is likely that this cabinet will work with both the XL and the XP.

This system started life as a C1 XL with 32 MB of memory, but was upgraded to a C1 XP with 128 MB of memory at some point in time. The C1 XL cabinet has apparently been left behind then.

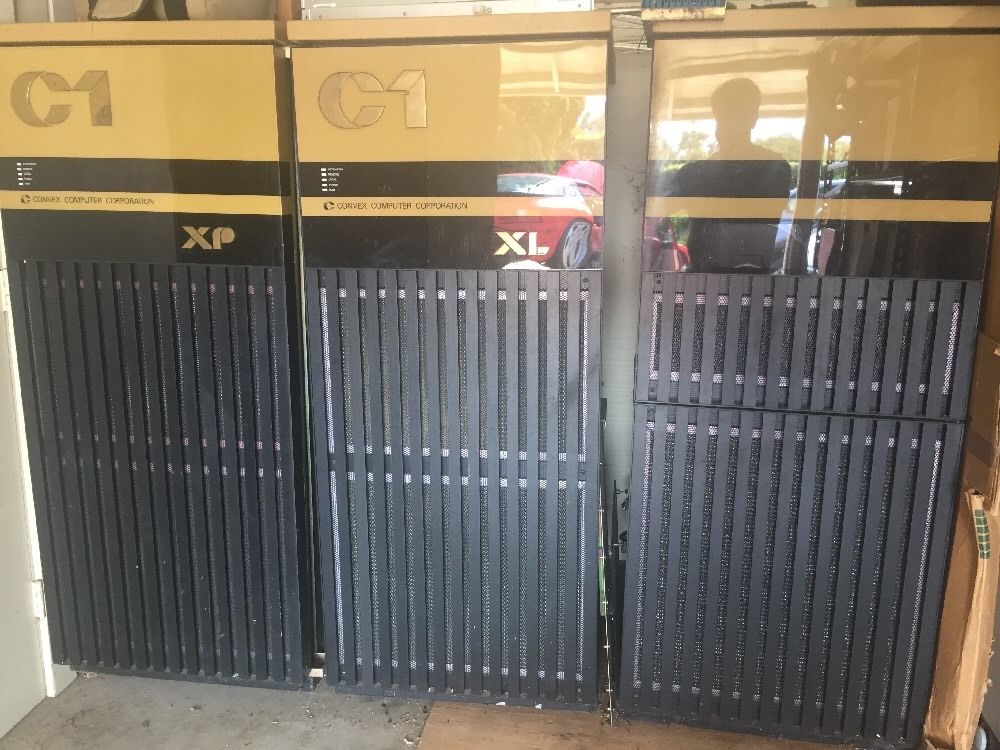

So, in total, there are three cabinets, each measuring 25 x 40 x 62 inches (64 x 102 x 158 cm), and weighing about 500 pounds (250kg).

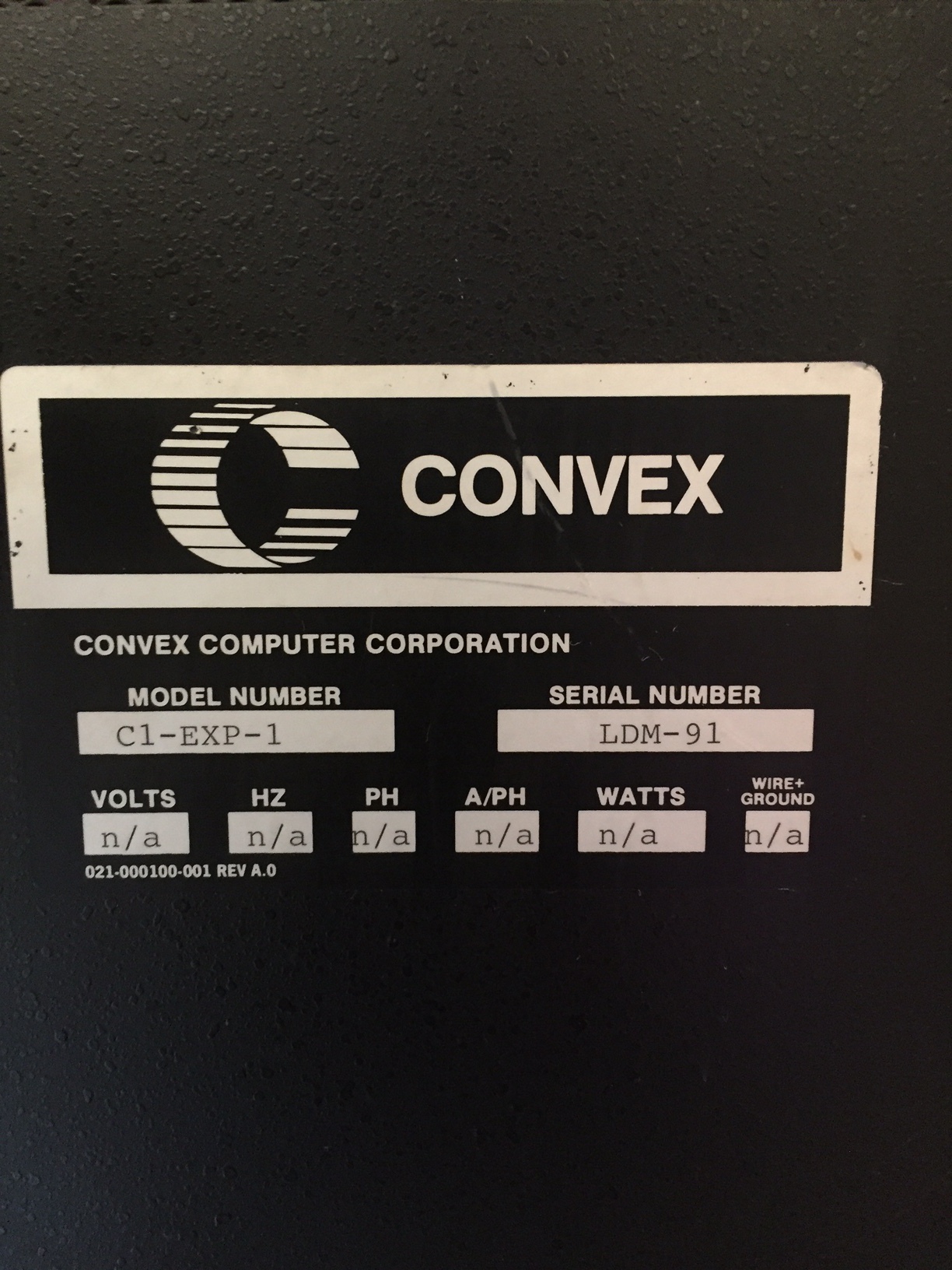

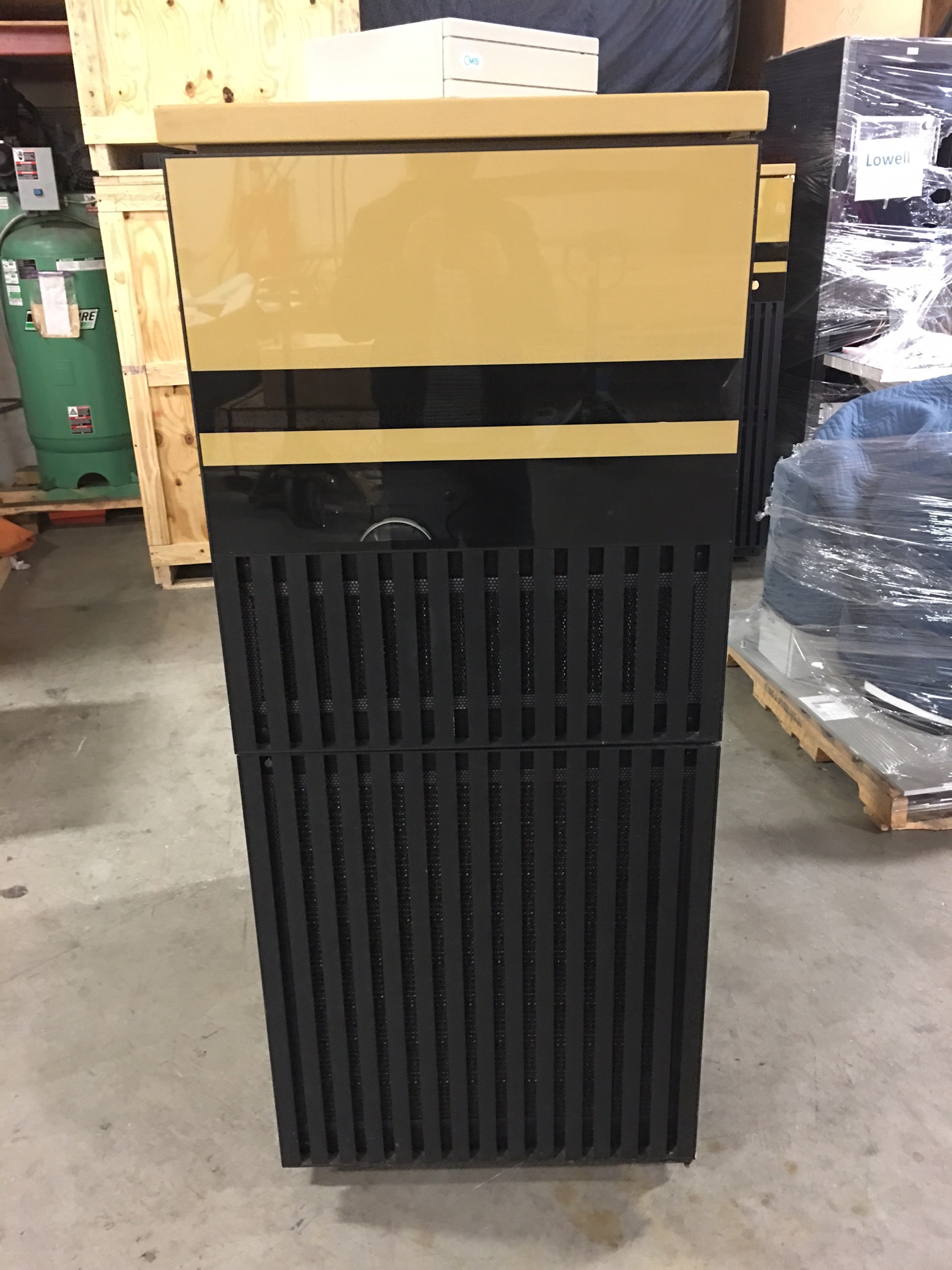

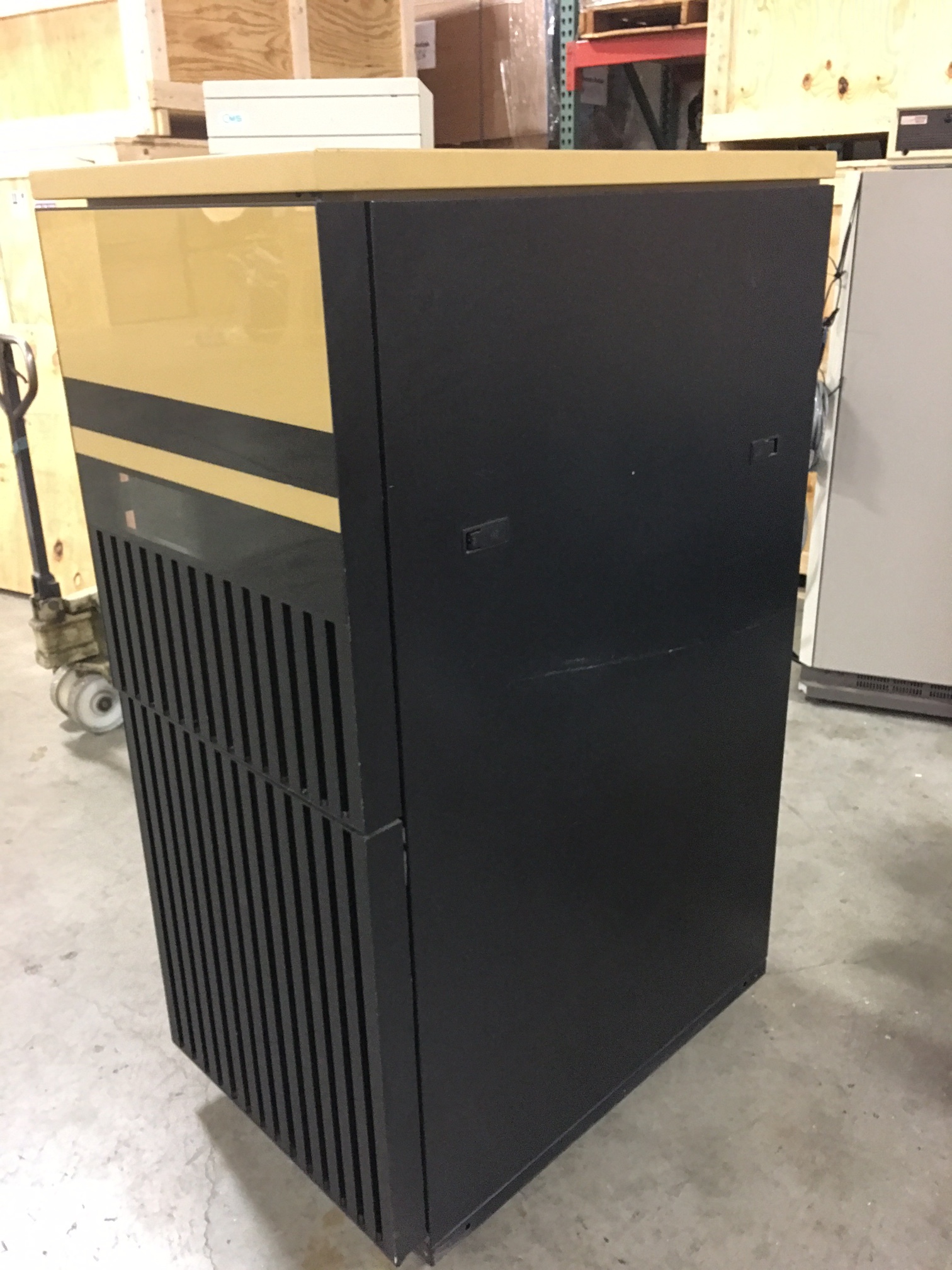

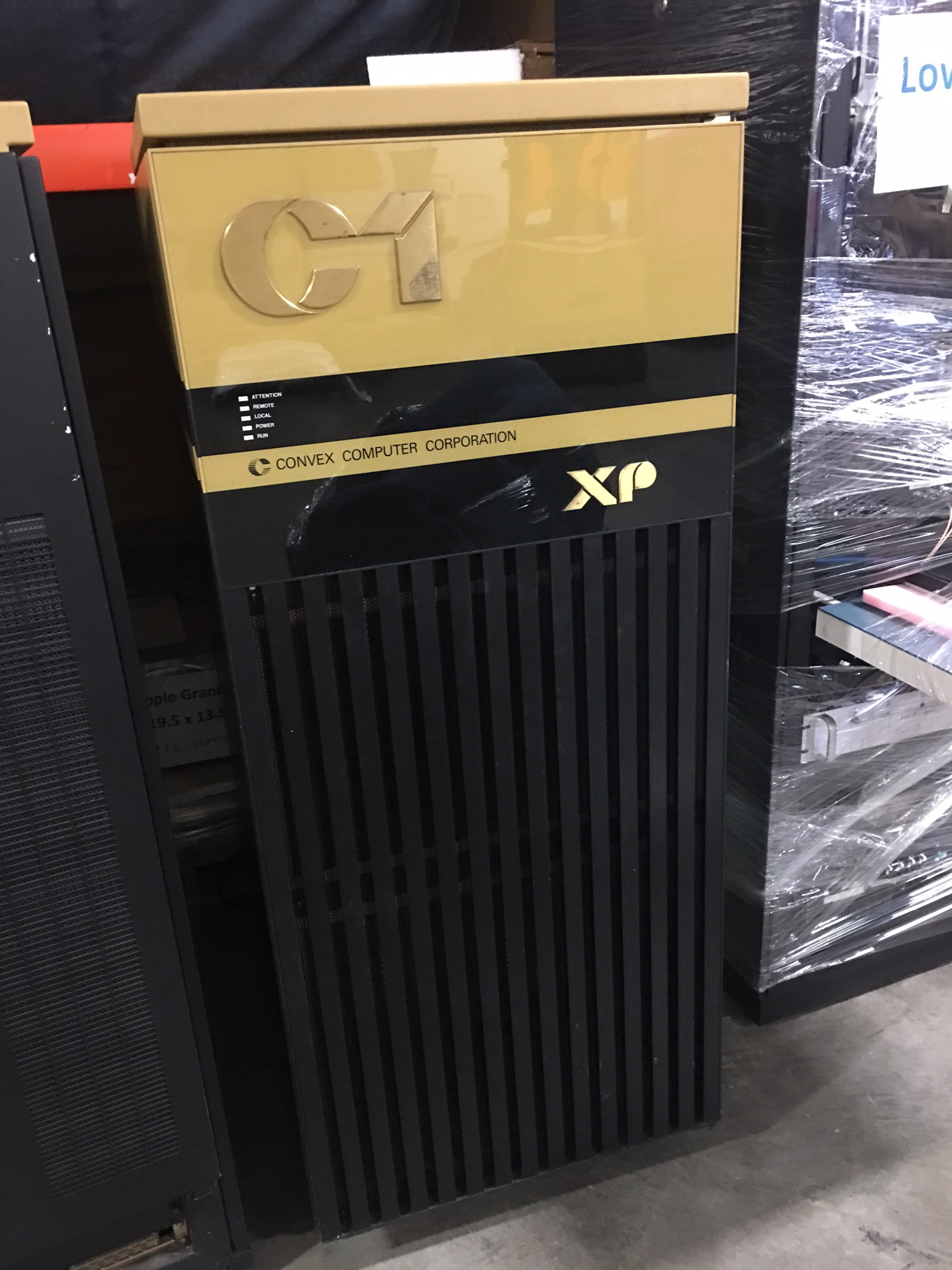

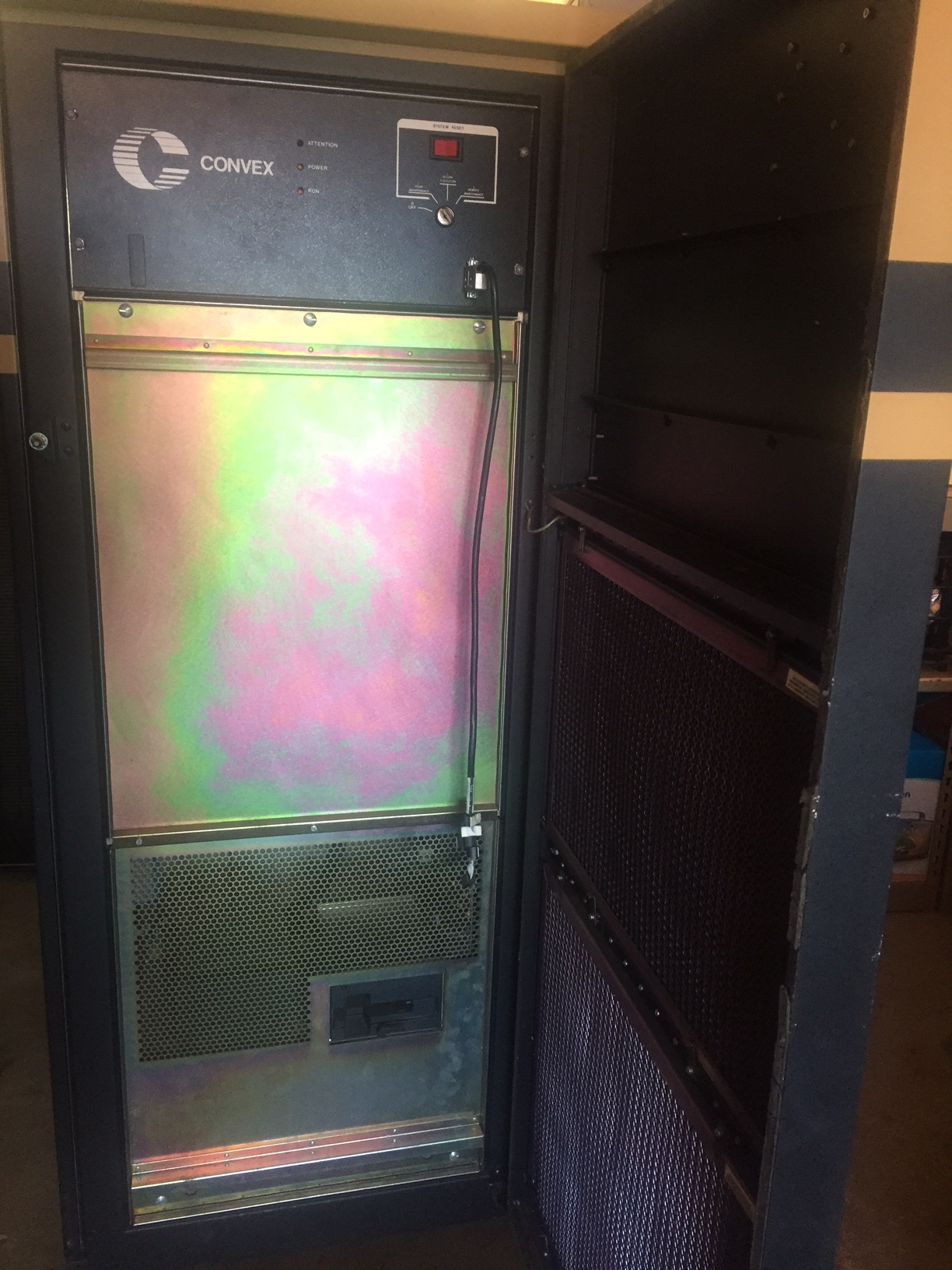

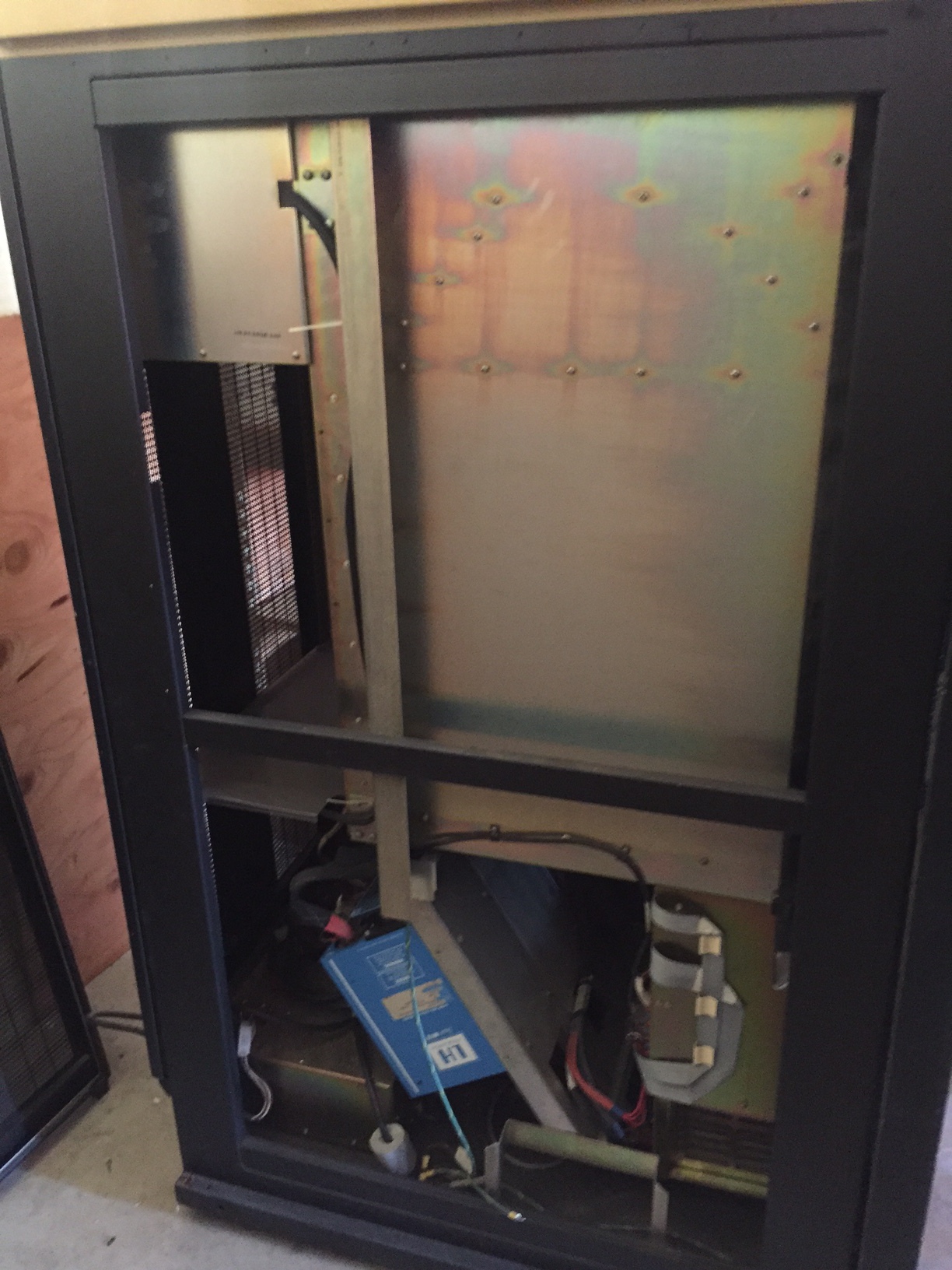

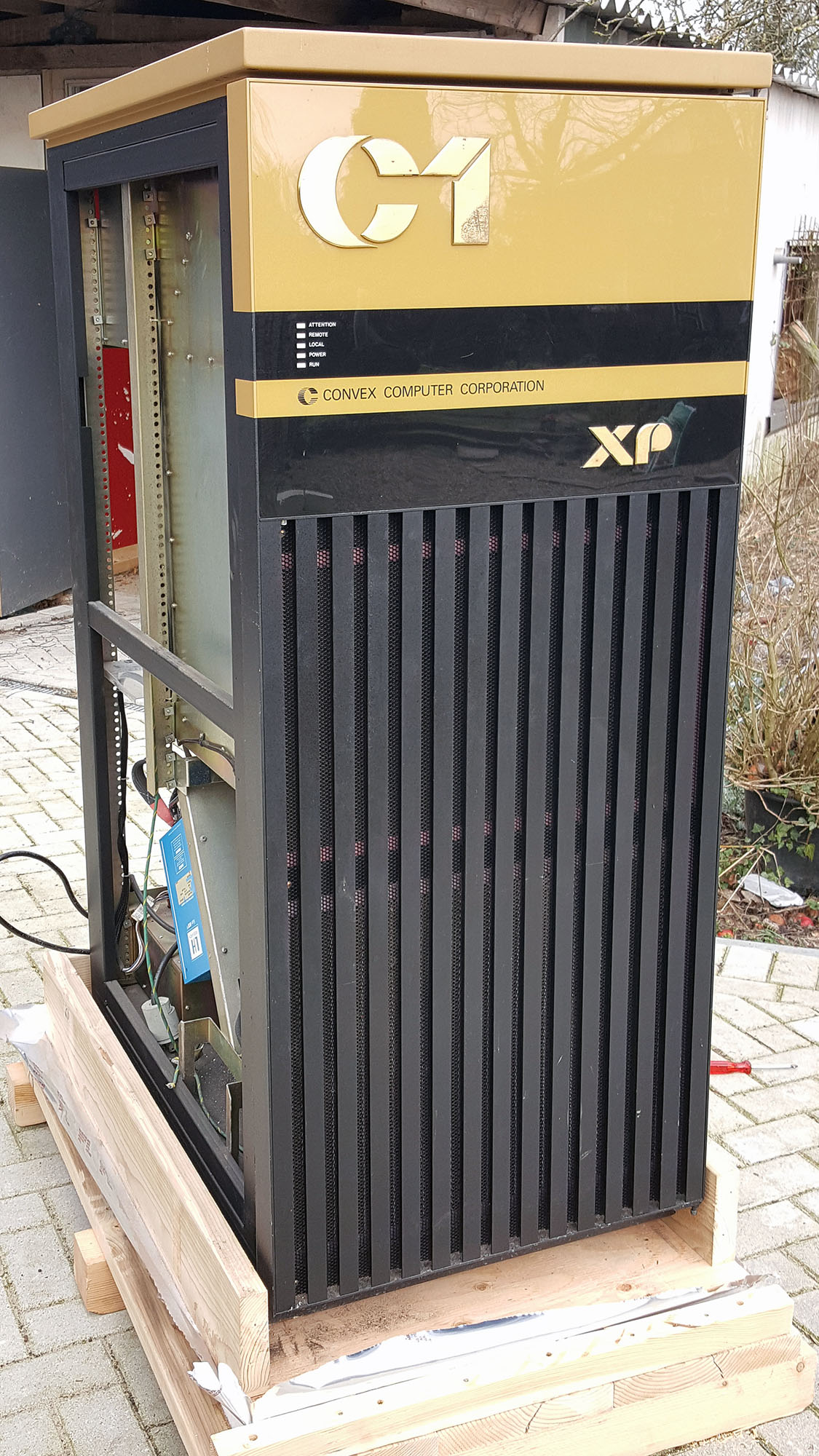

"XP" Cabinet

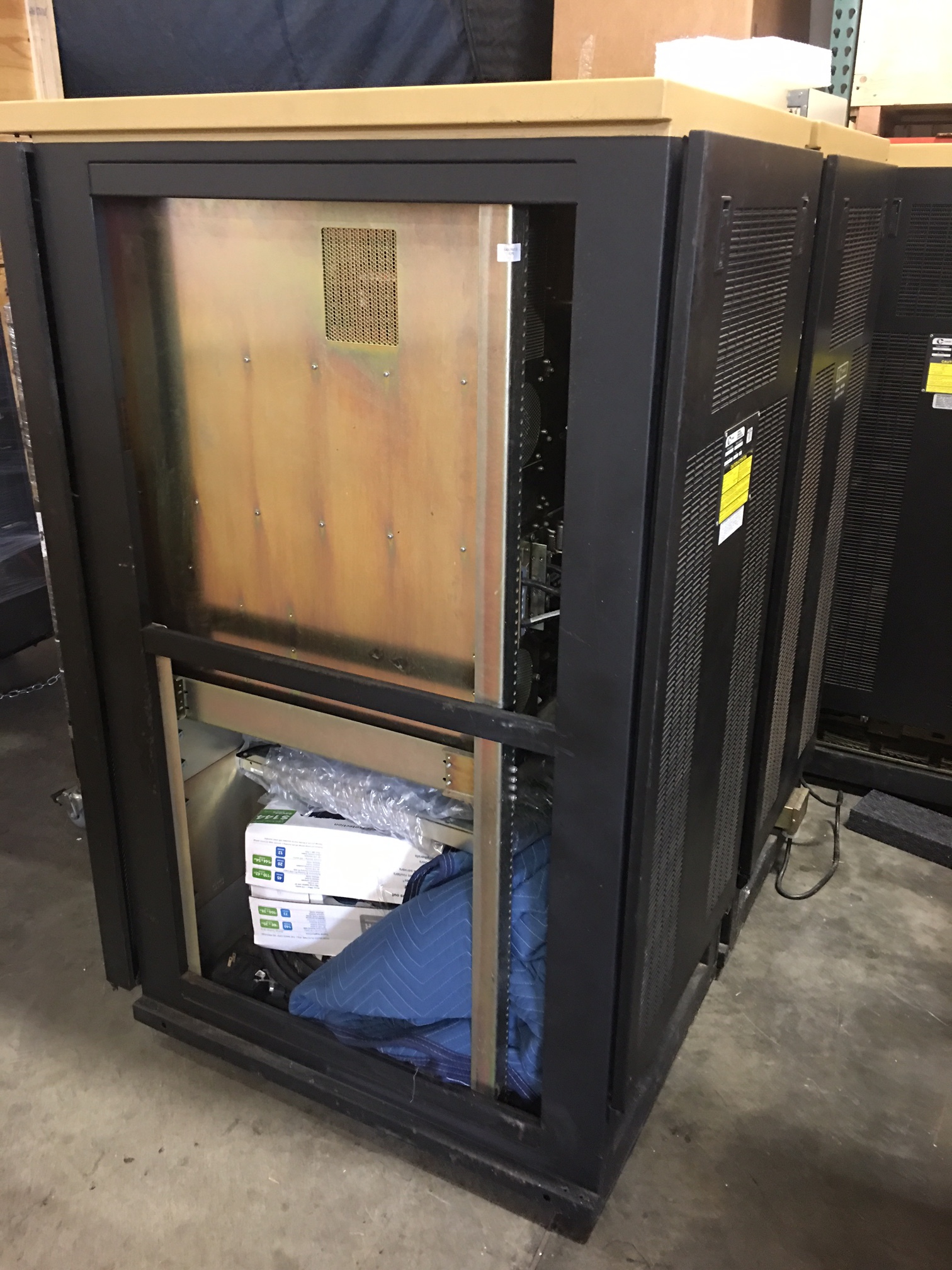

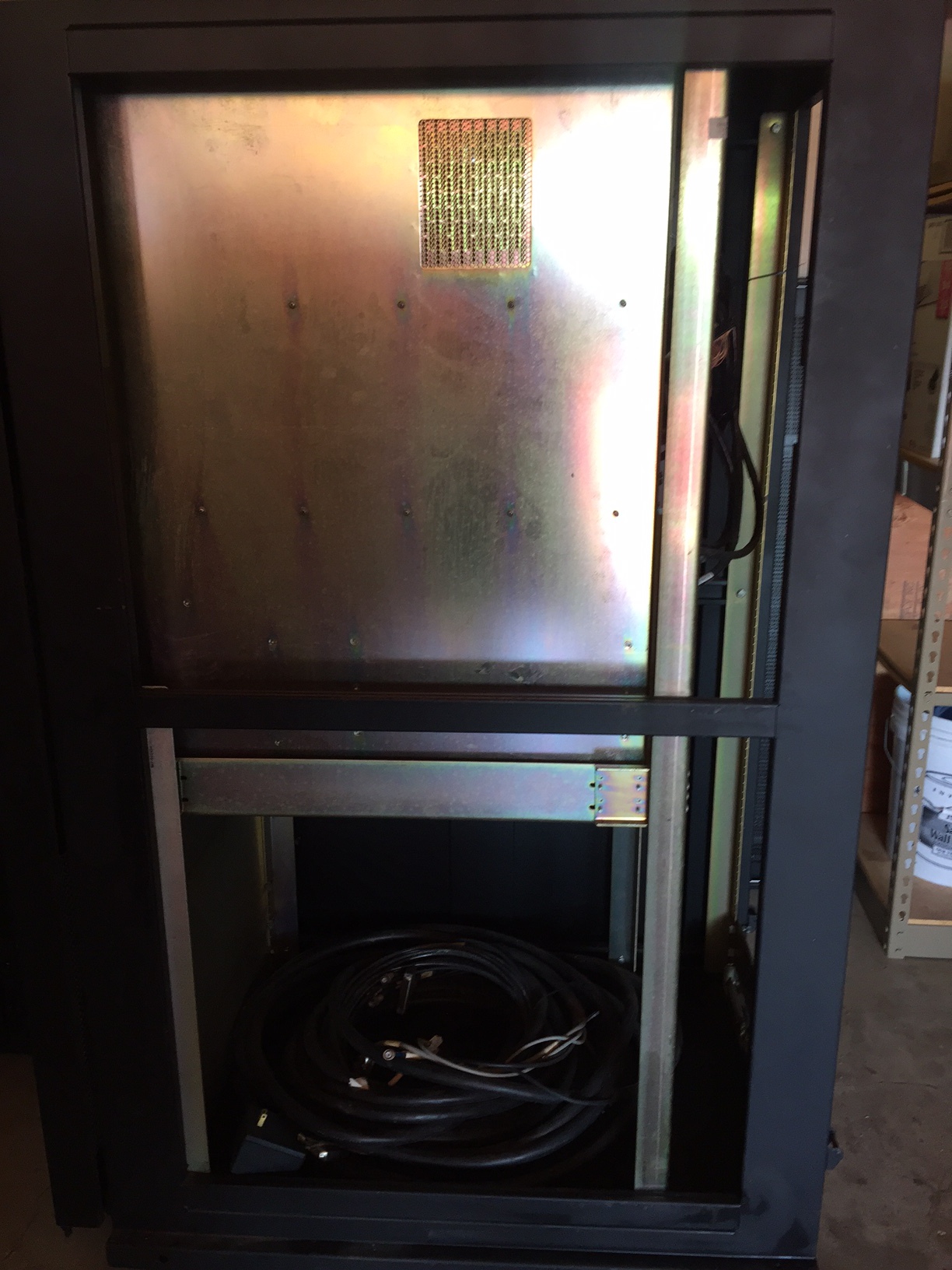

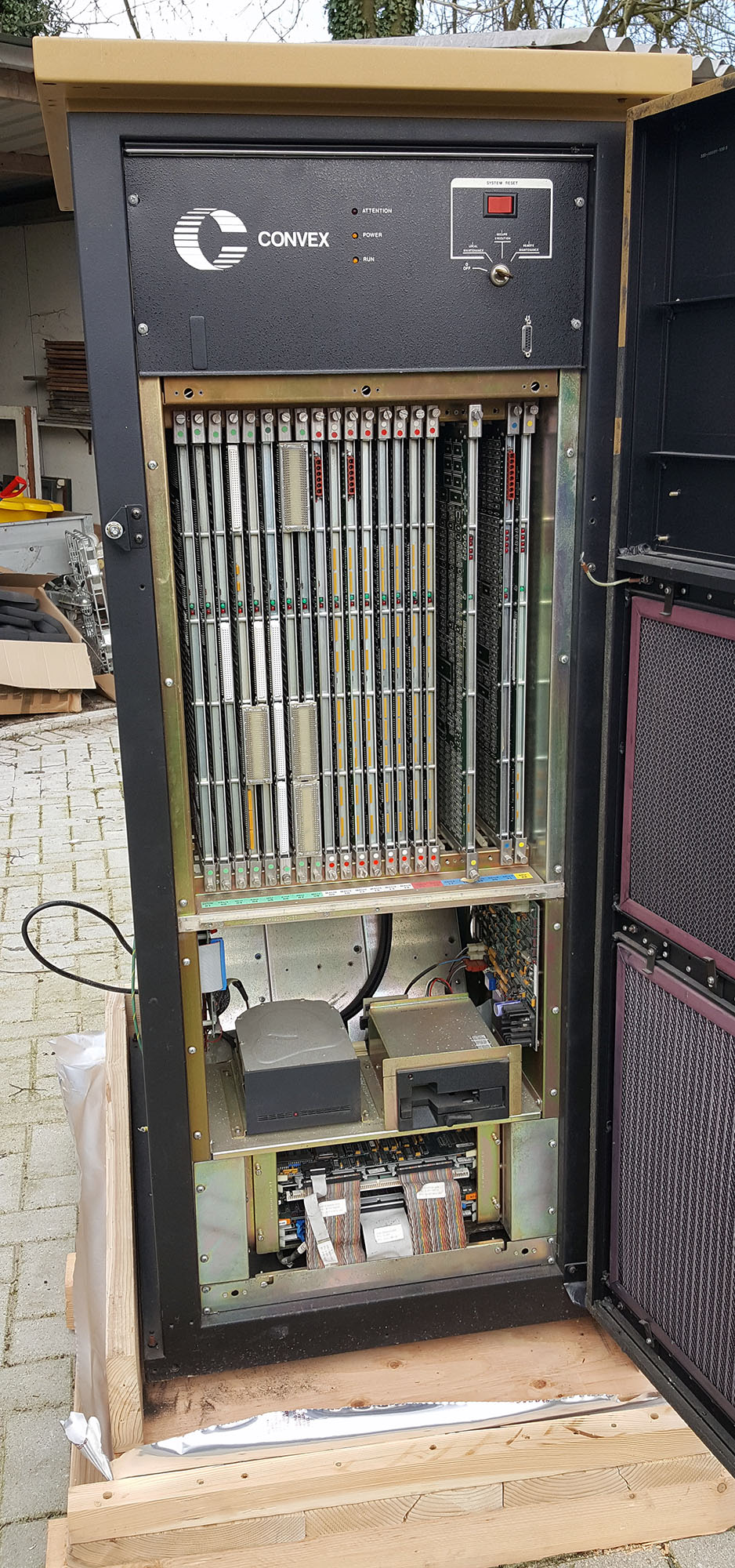

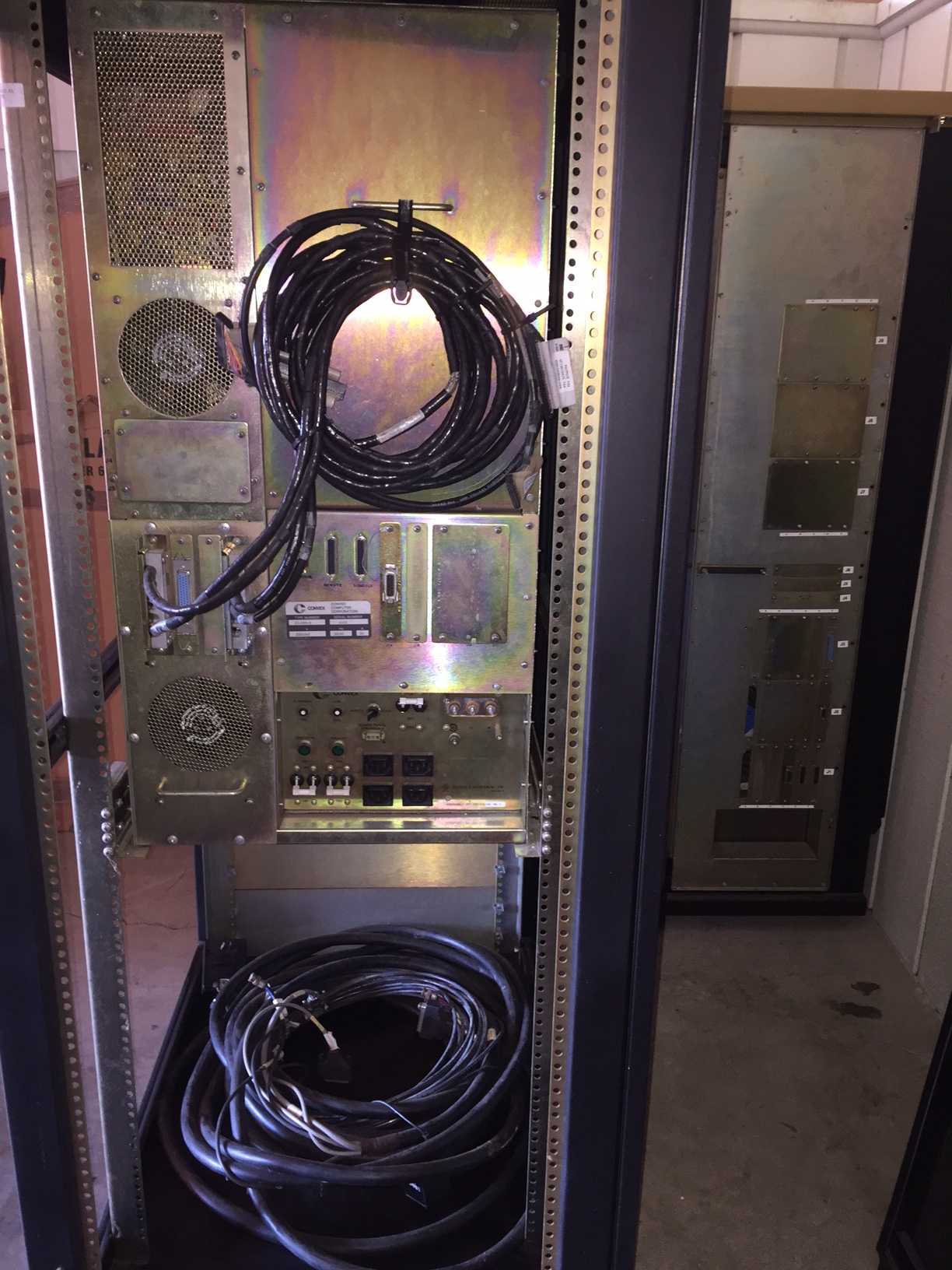

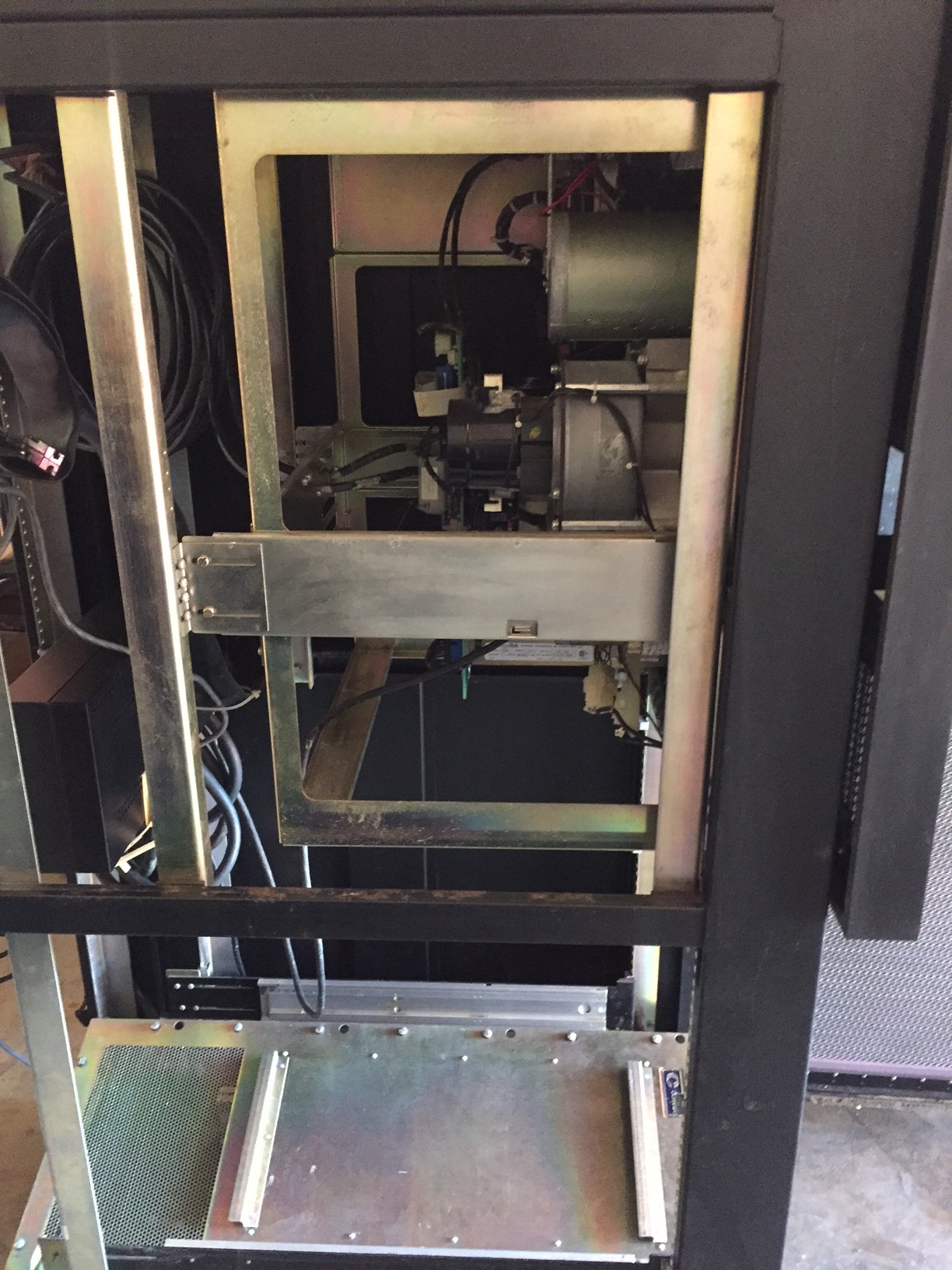

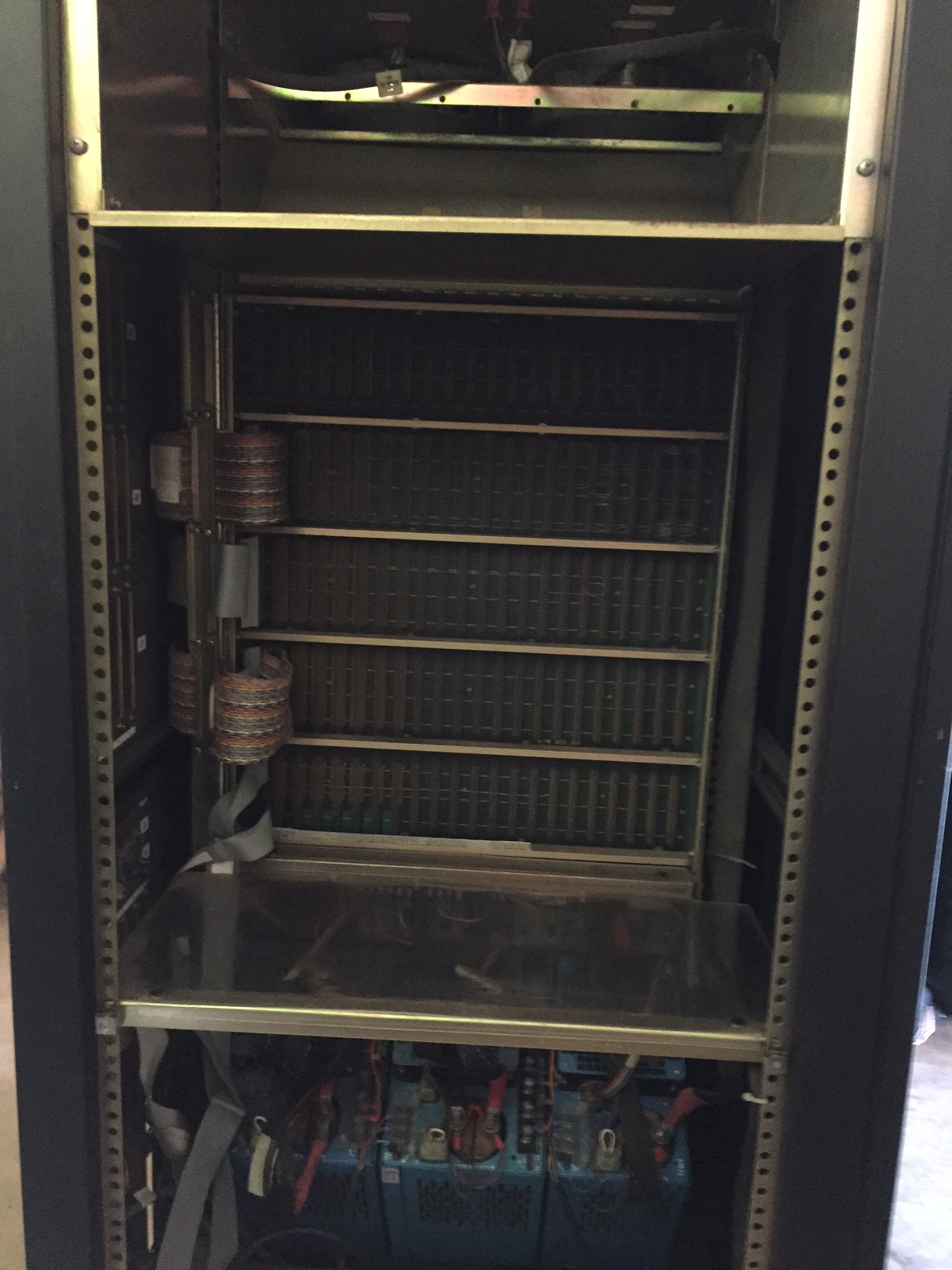

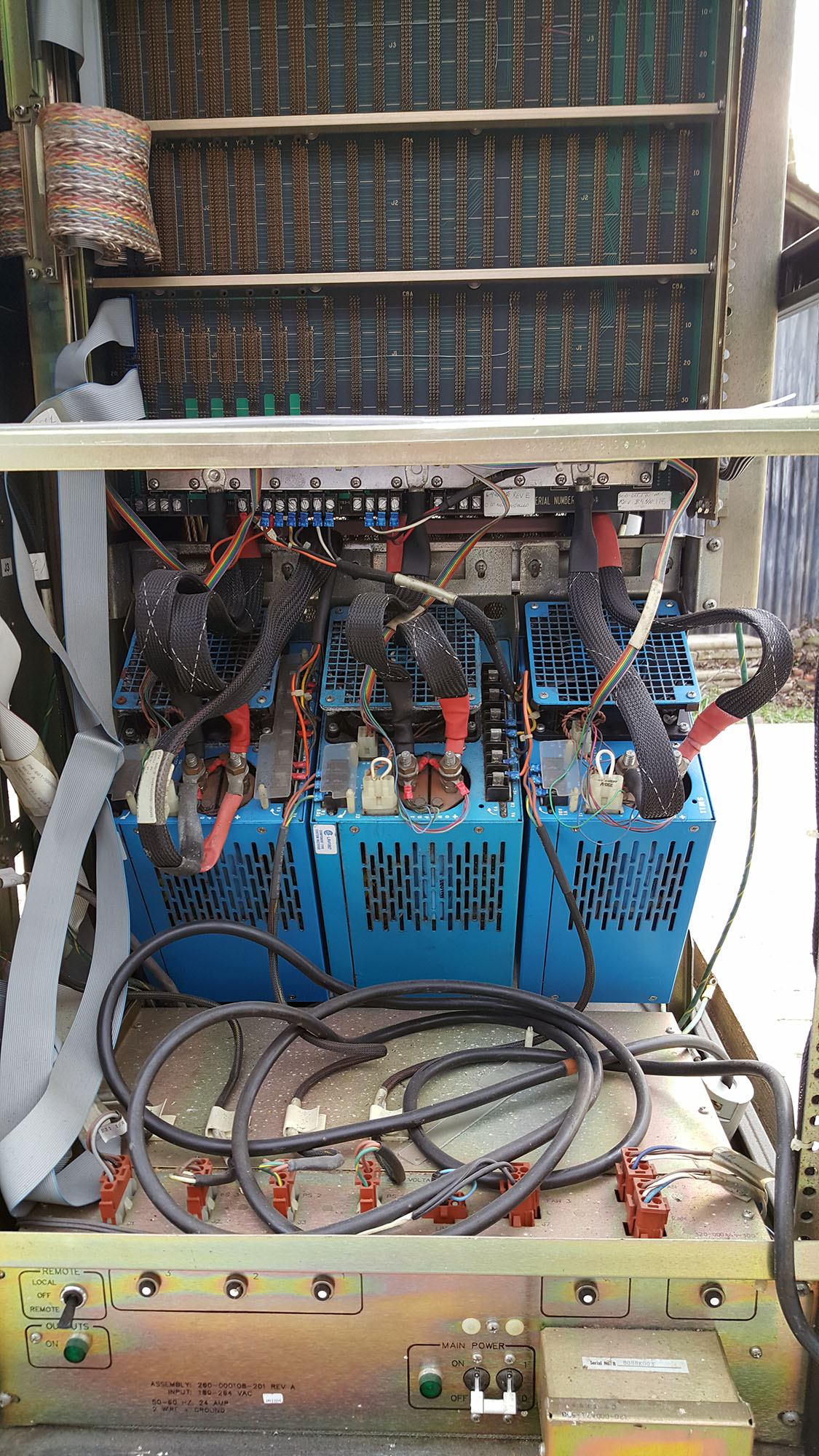

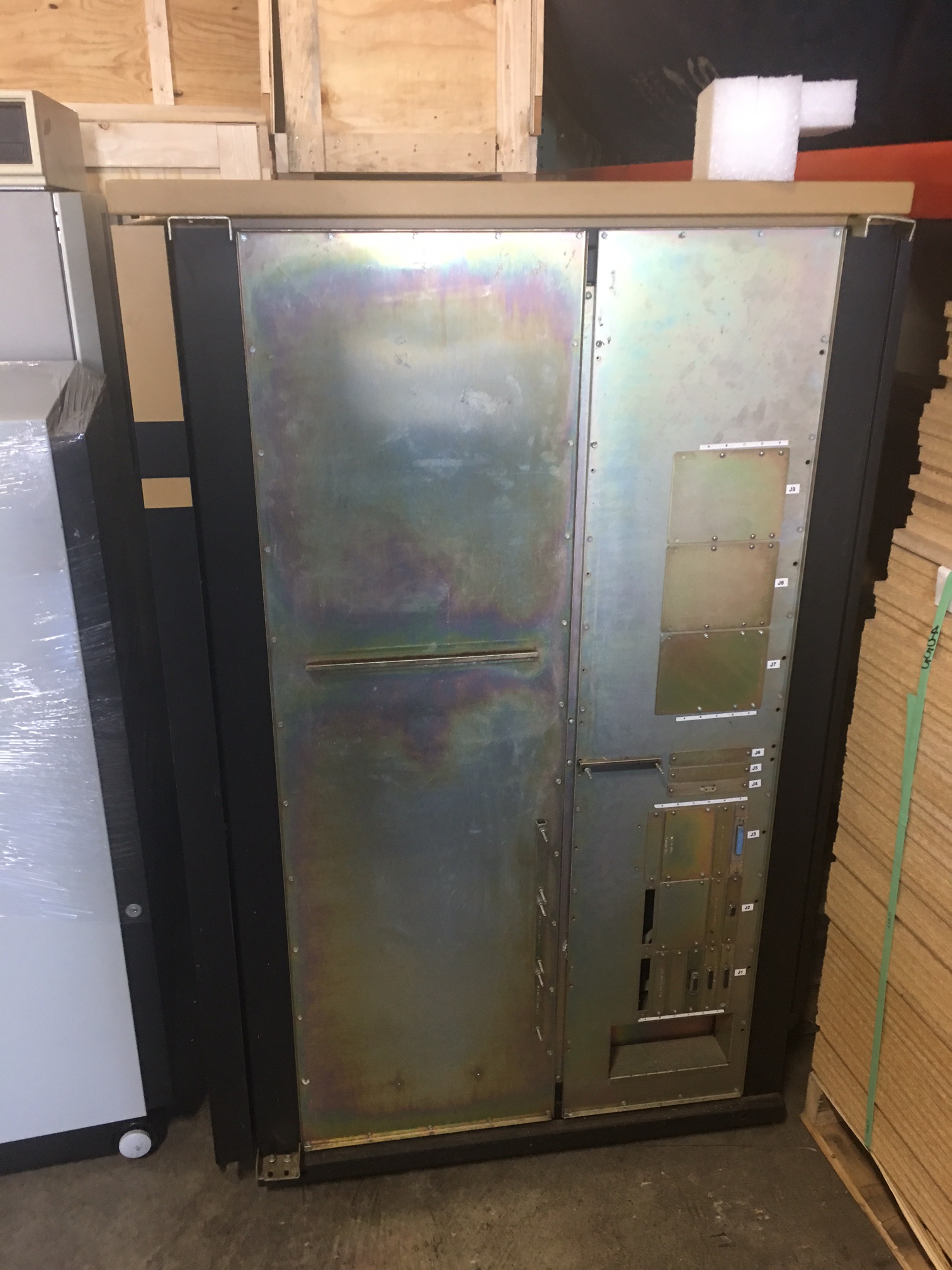

The C1-XP cabinet contains a large card-cage at the top (22 slots, it seems like). Underneath it, at the back of the machine, are three large power supplies, and at the front of the machine are a small card cage (Multibus or VME), a tape drive and hard disk; these are used to boot the SPU (Service Processor Unit), a 68000-based computer running V7 UNIX that controls the rest of the system.

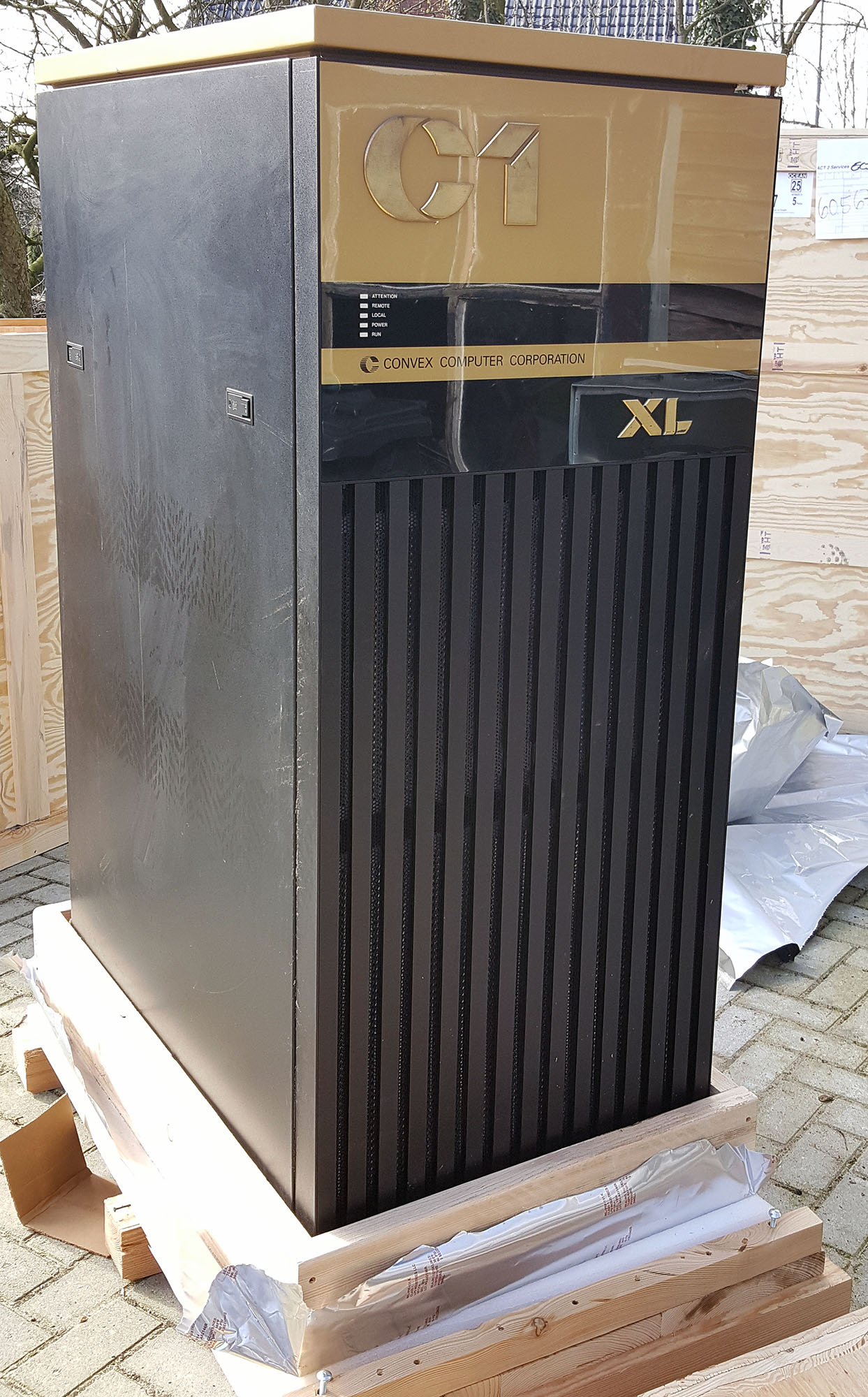

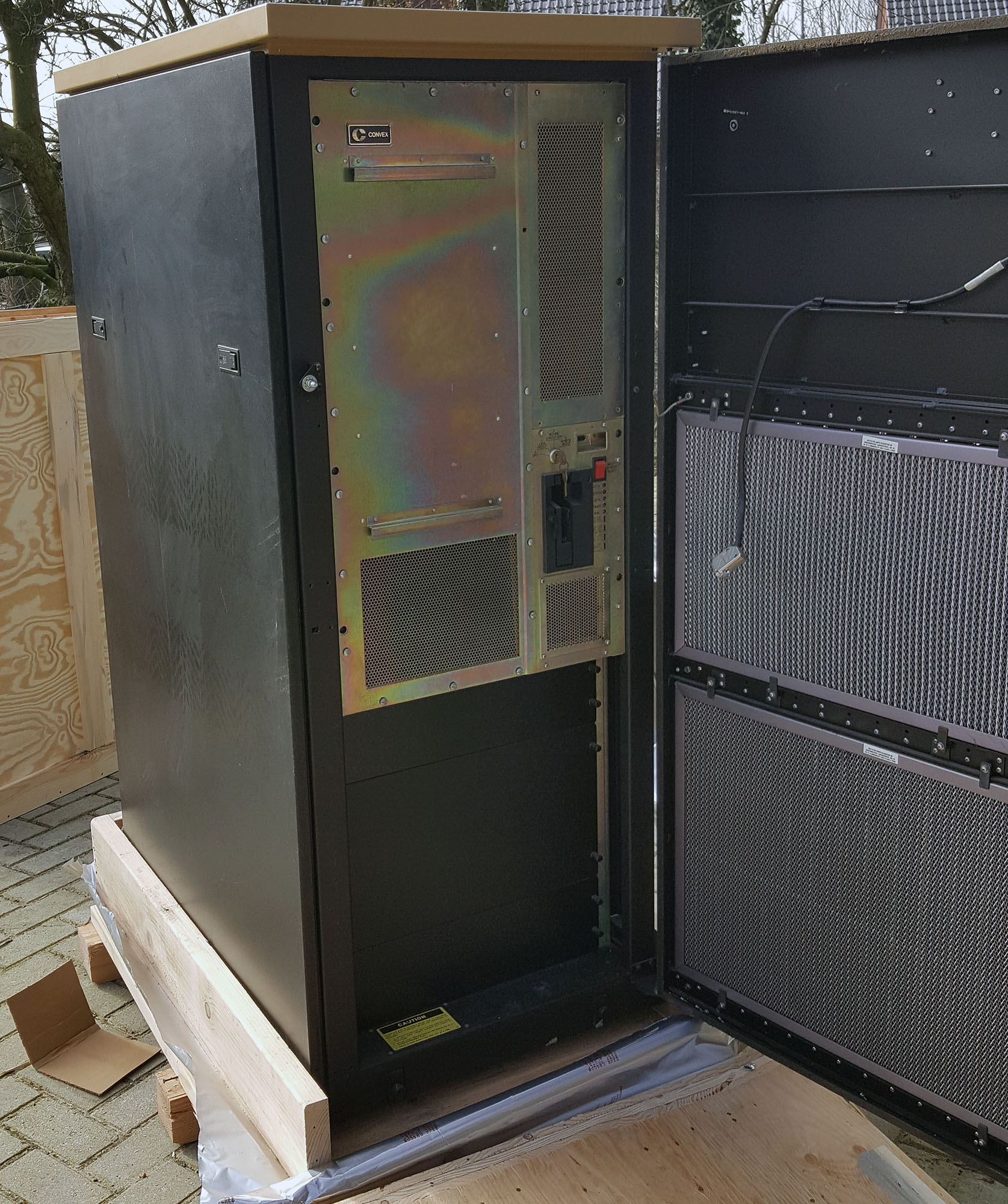

"XL" Cabinet

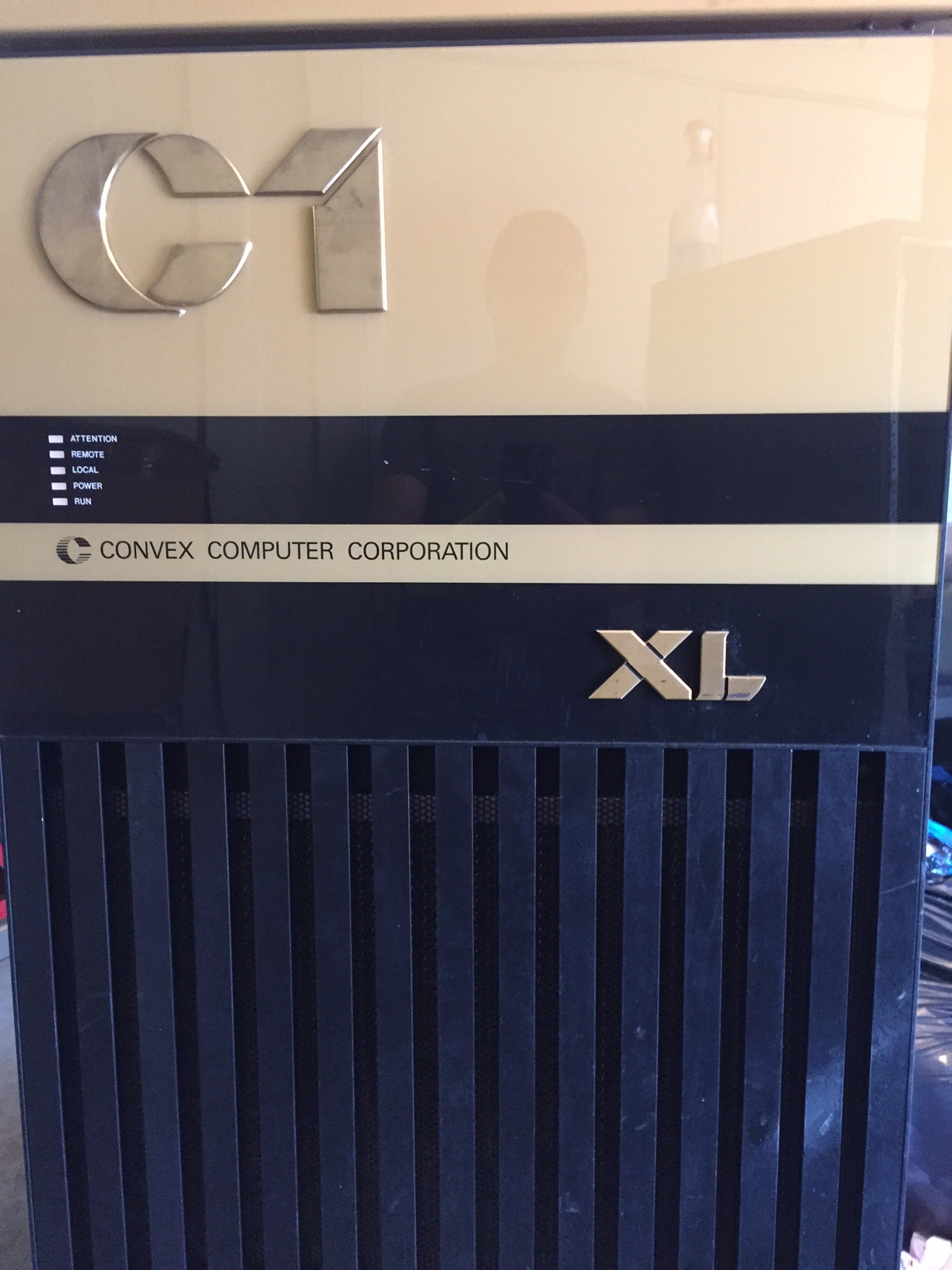

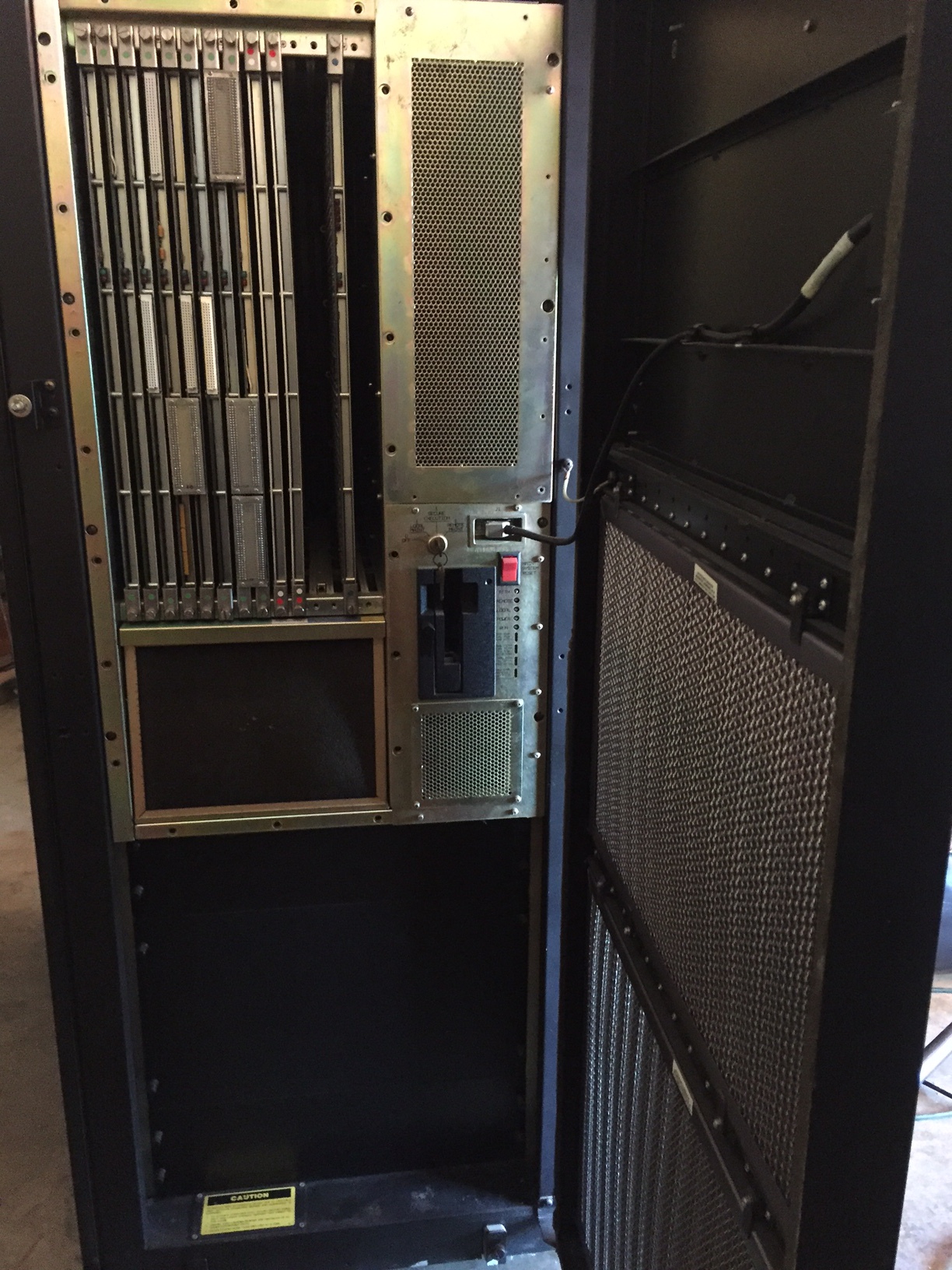

The C1-XL cabinet contains a smaller card-cage at the top left hand corner (14 slots). The power supplies are built into the back of this chassis, and the Multibus or VMS card cage and the SPU tape drive and hard disk are built into the right-hand side of the chassis.

I/O Cabinet

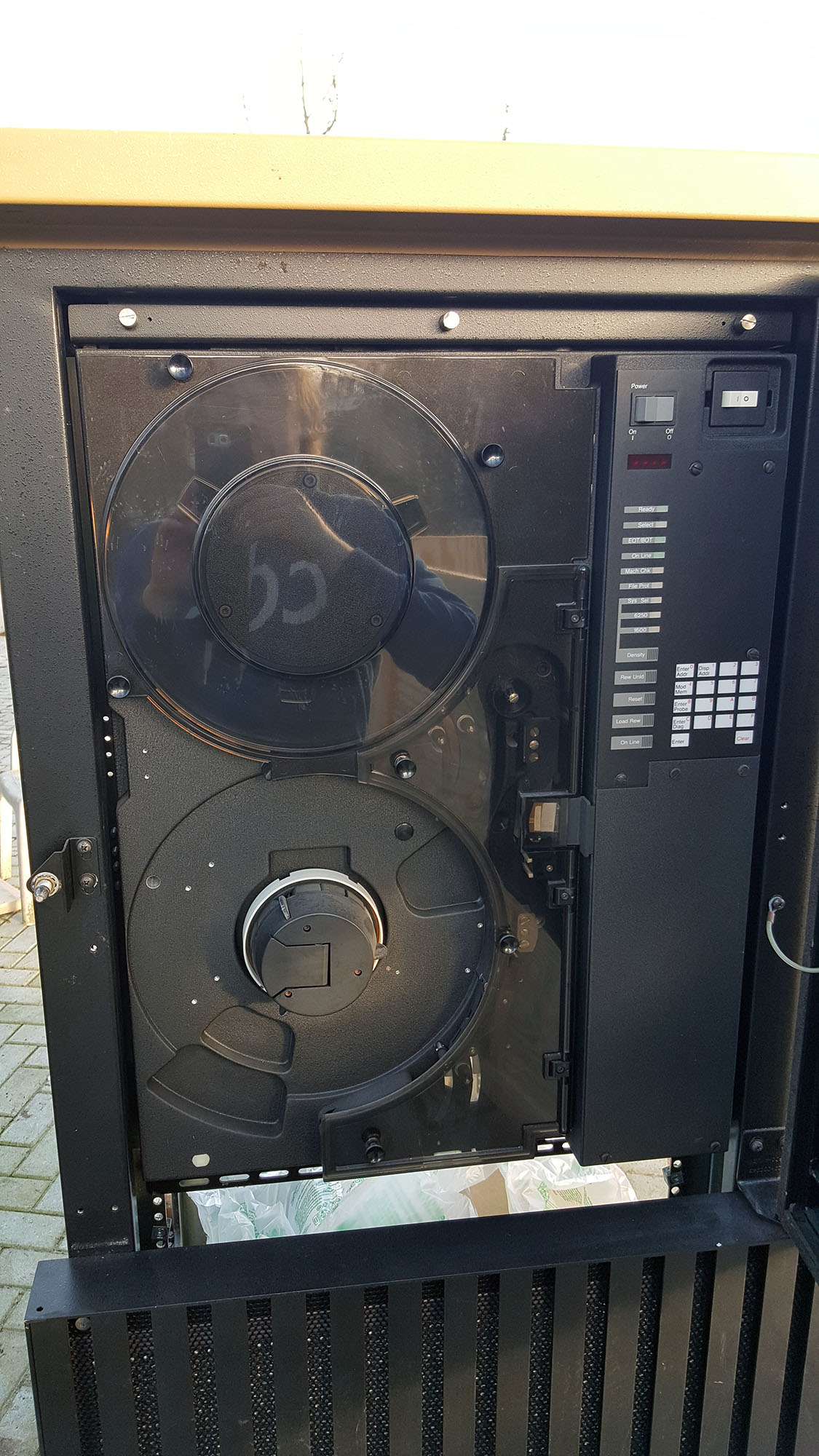

I have no front picture of the I/O cabinet with the doors open yet, but from the side, a 9-track StorageTek reel-to-reel tapedrive can be seen. At the left edge is a black rectangular box that I assume is the RS-232 port interface to a 16-port Systech MTI-1600 or MTI-1650 controller. There should have been one or two SMD hard disks in this cabinet (the main hard drive for the system), but these are sadly missing.

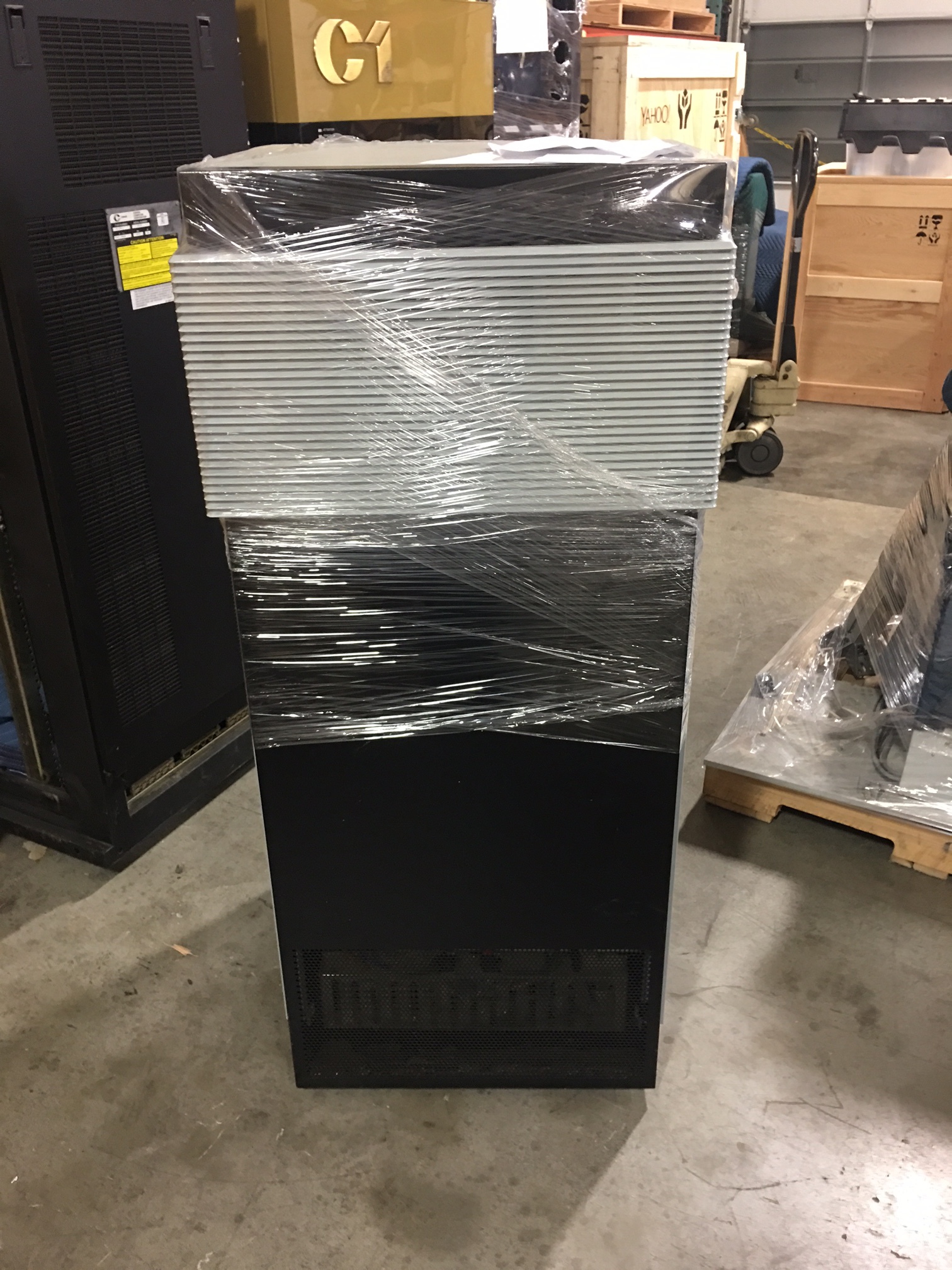

3. An Ardent Titan (1987)

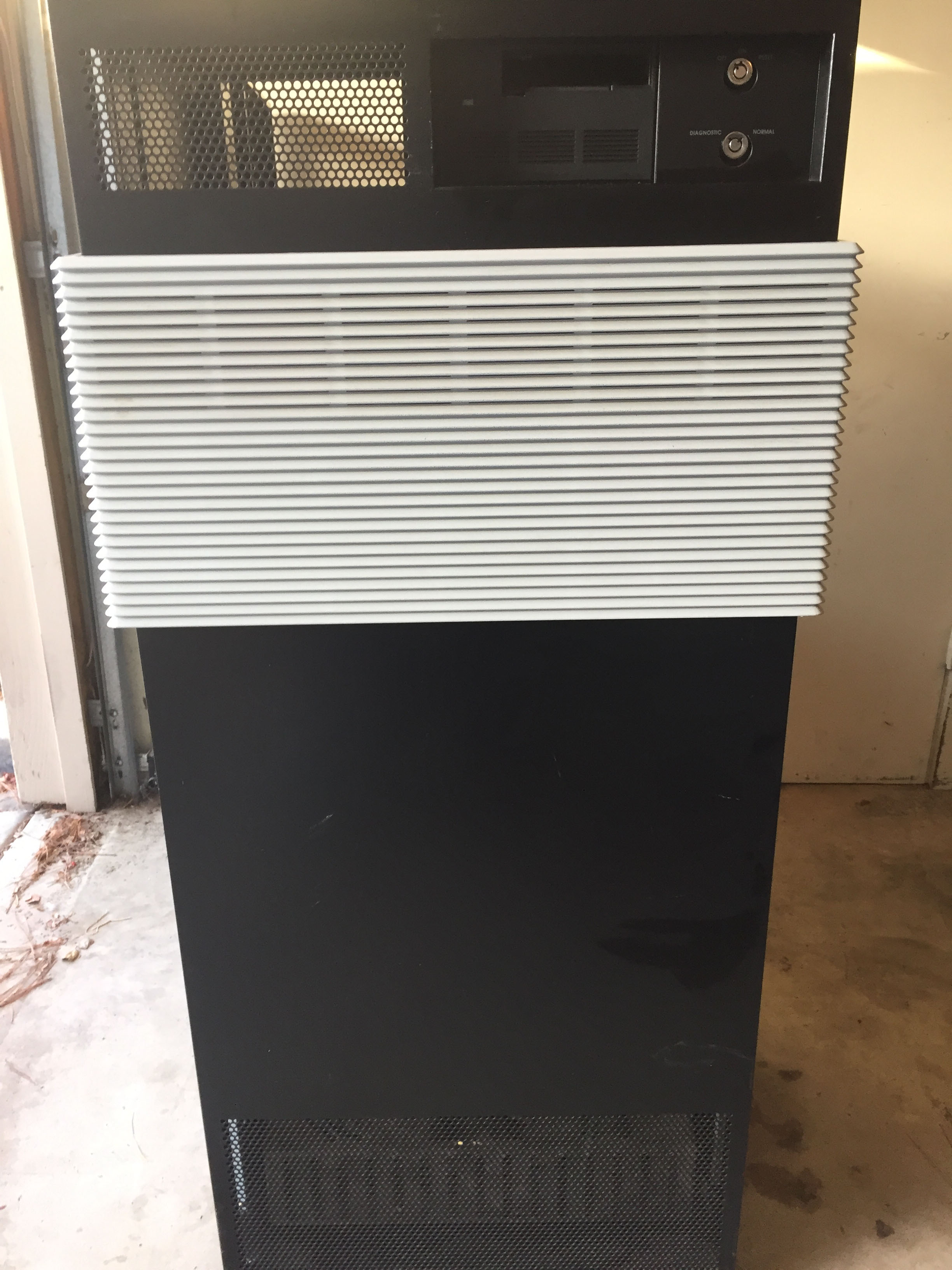

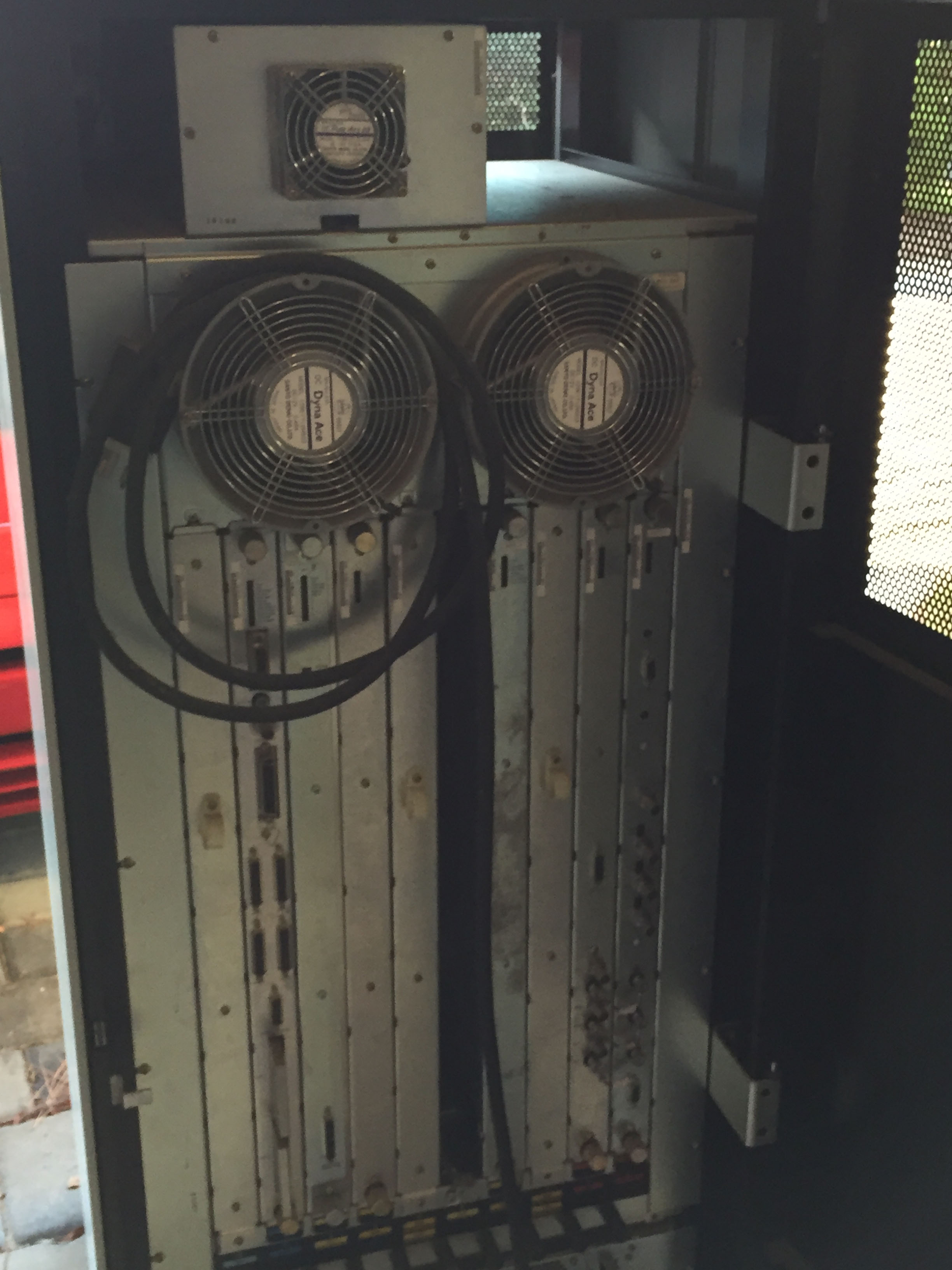

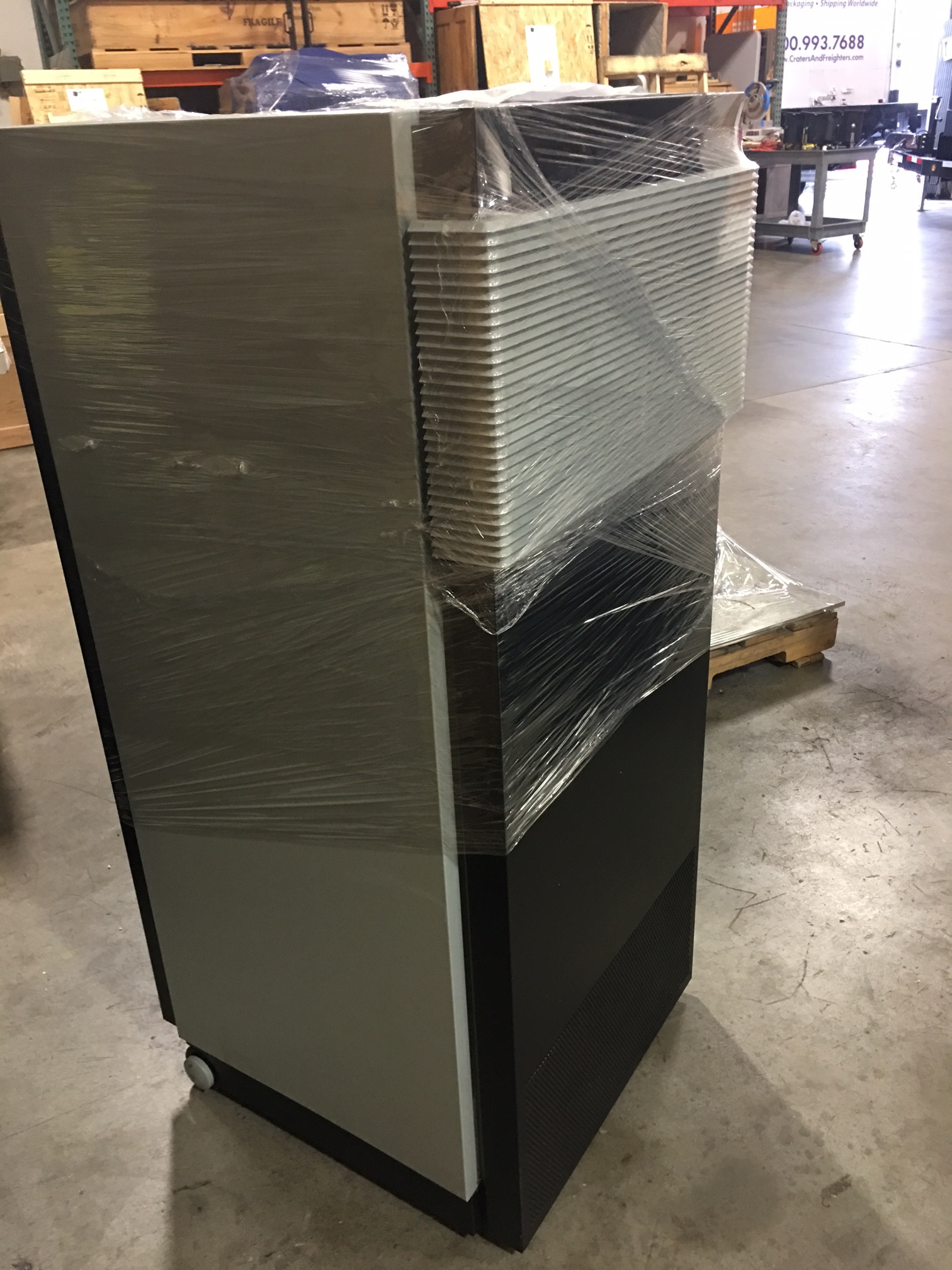

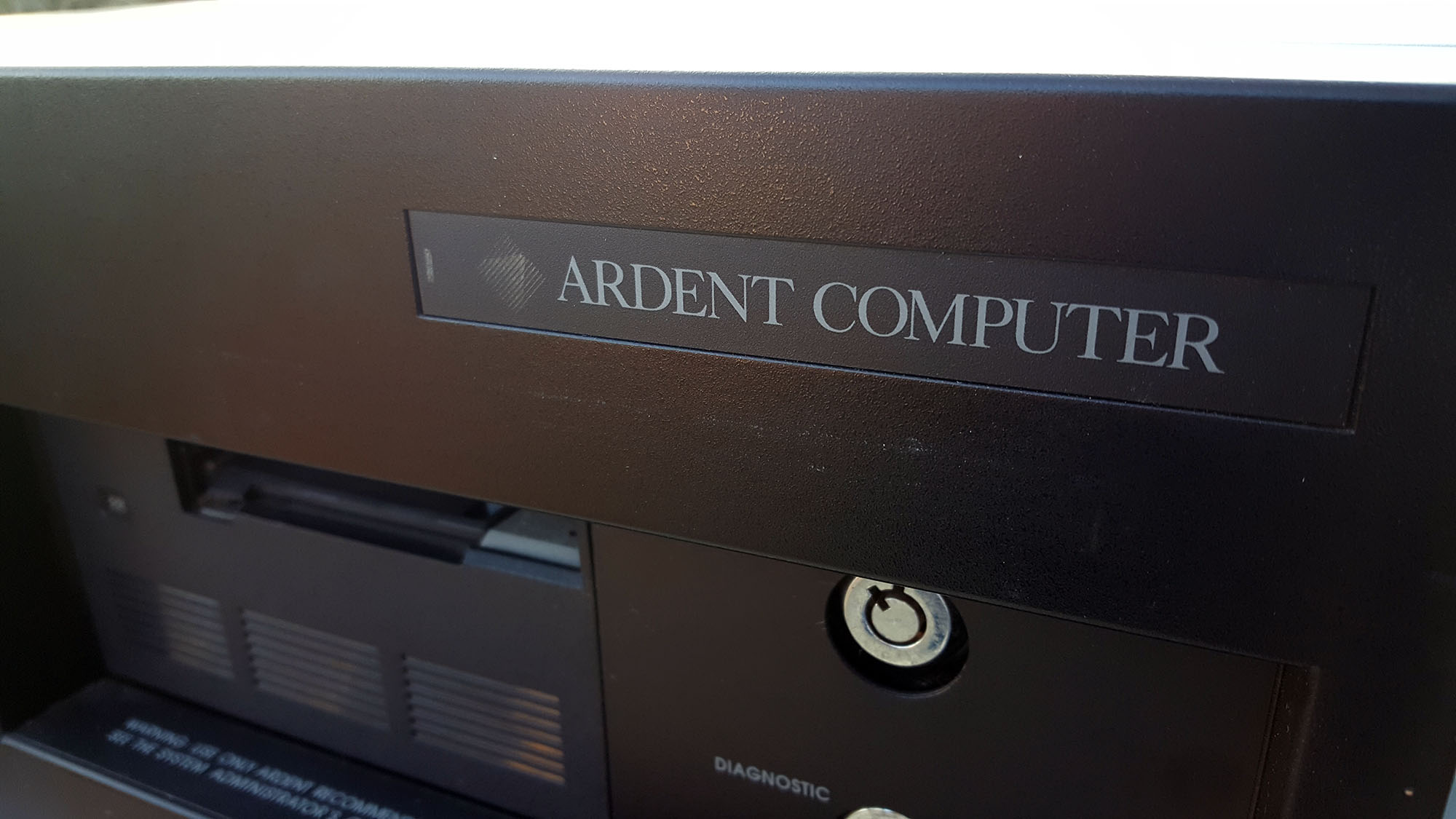

The third system in the lot is an Ardent Titan.

Gordon Bell paper on the Ardent Titan: http://research.microsoft.com/en-us/um/people/gbell/CGB%20Files/Bell-Worley%20Graphics%20Supercomputer%201989%20c.pdf

The RICM has an Ardent Titan: http://www.ricomputermuseum.org/Home/equipment/ardent-titan, and so does the computer History Museum: http://www.computerhistory.org/collections/catalog/X1569.98

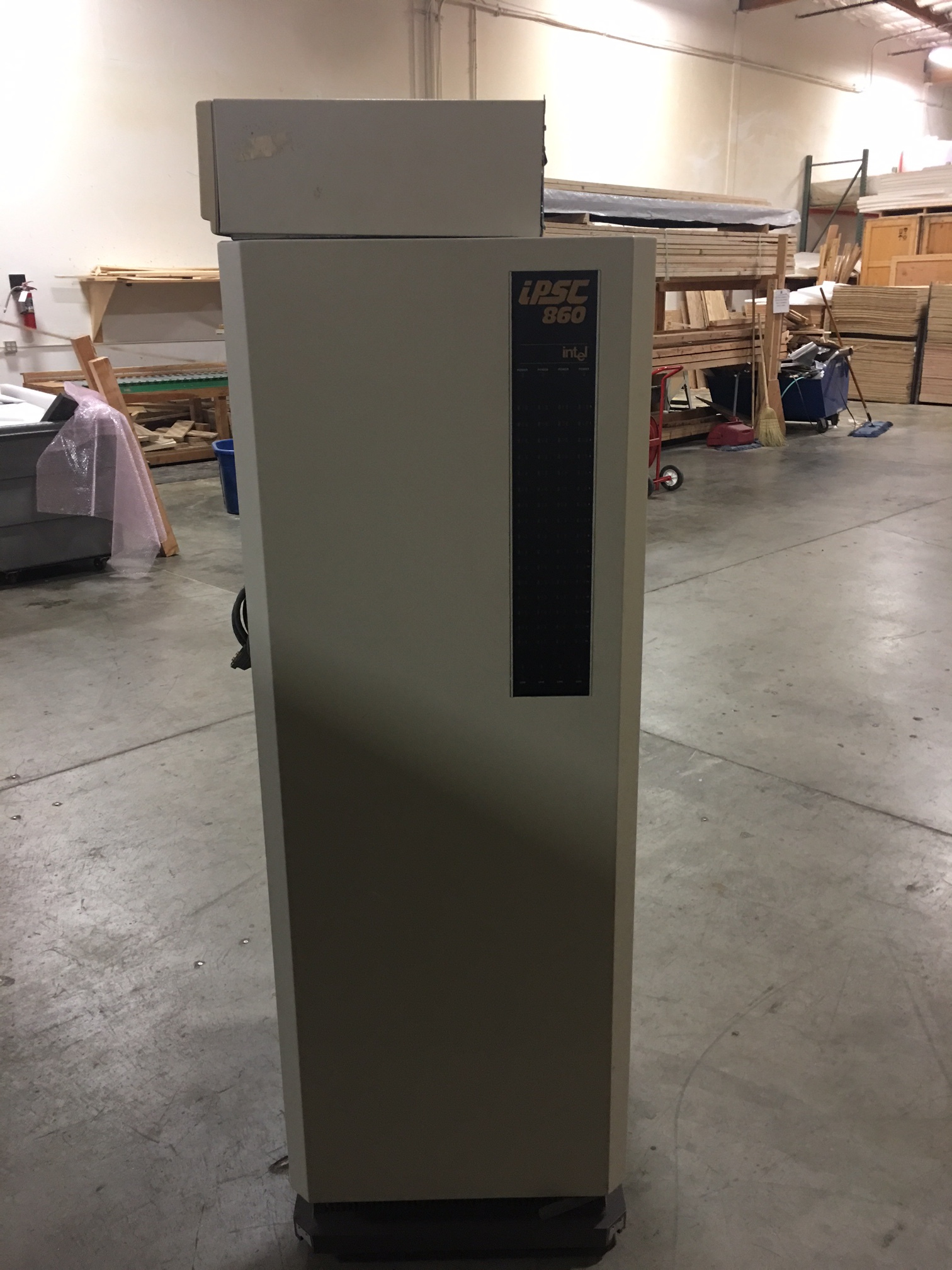

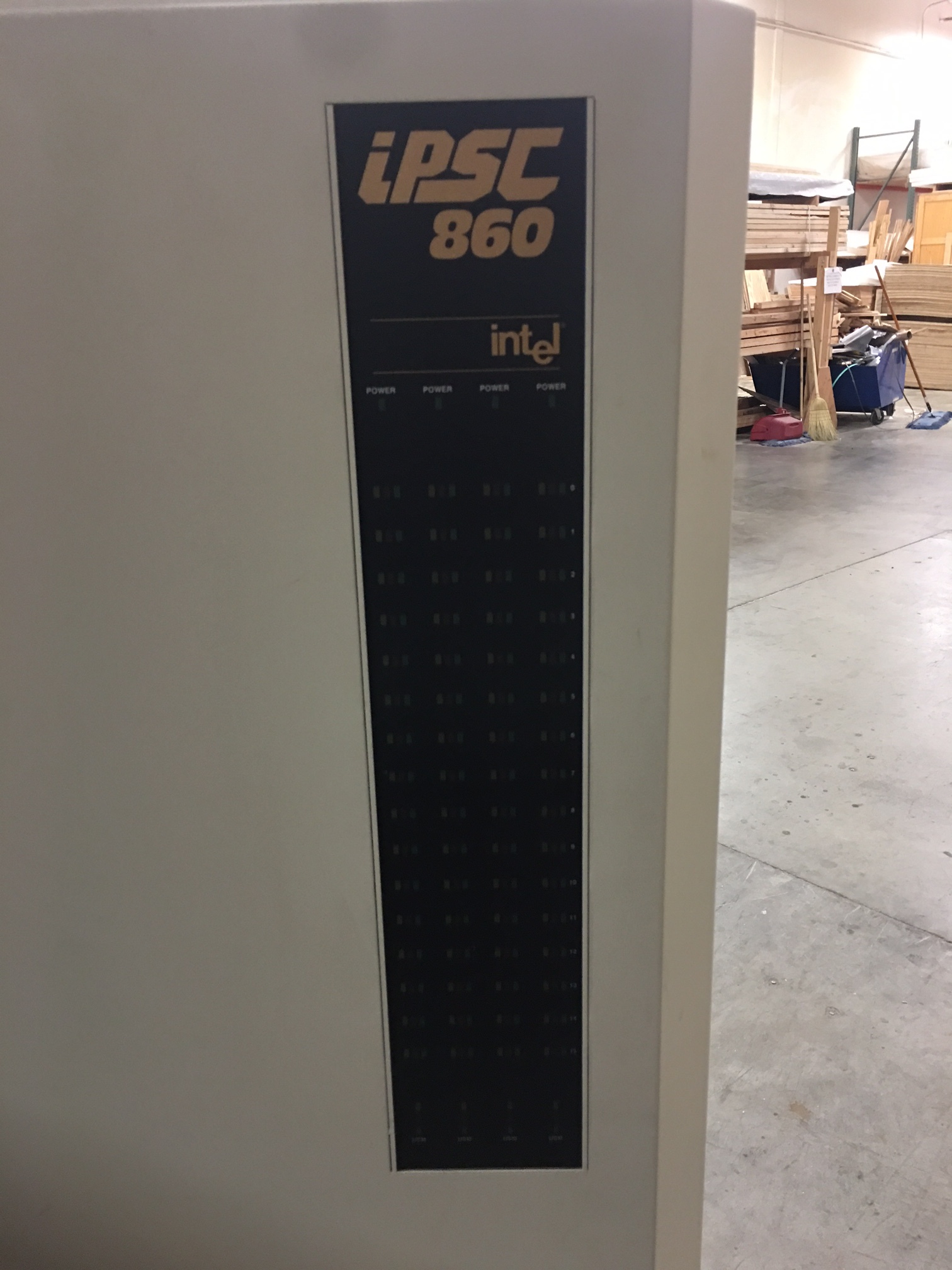

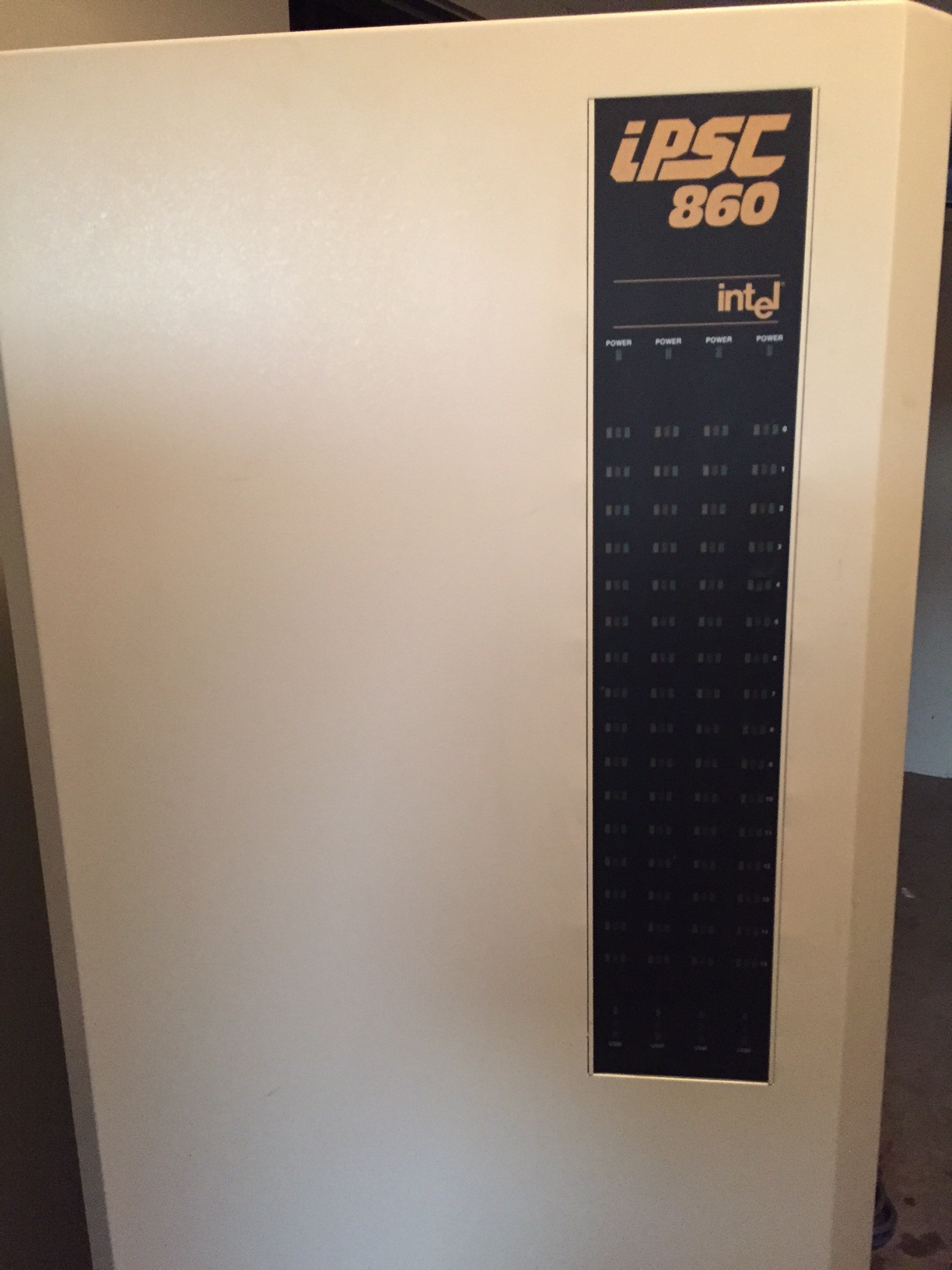

4. An Intel iPSC/860 (1989)

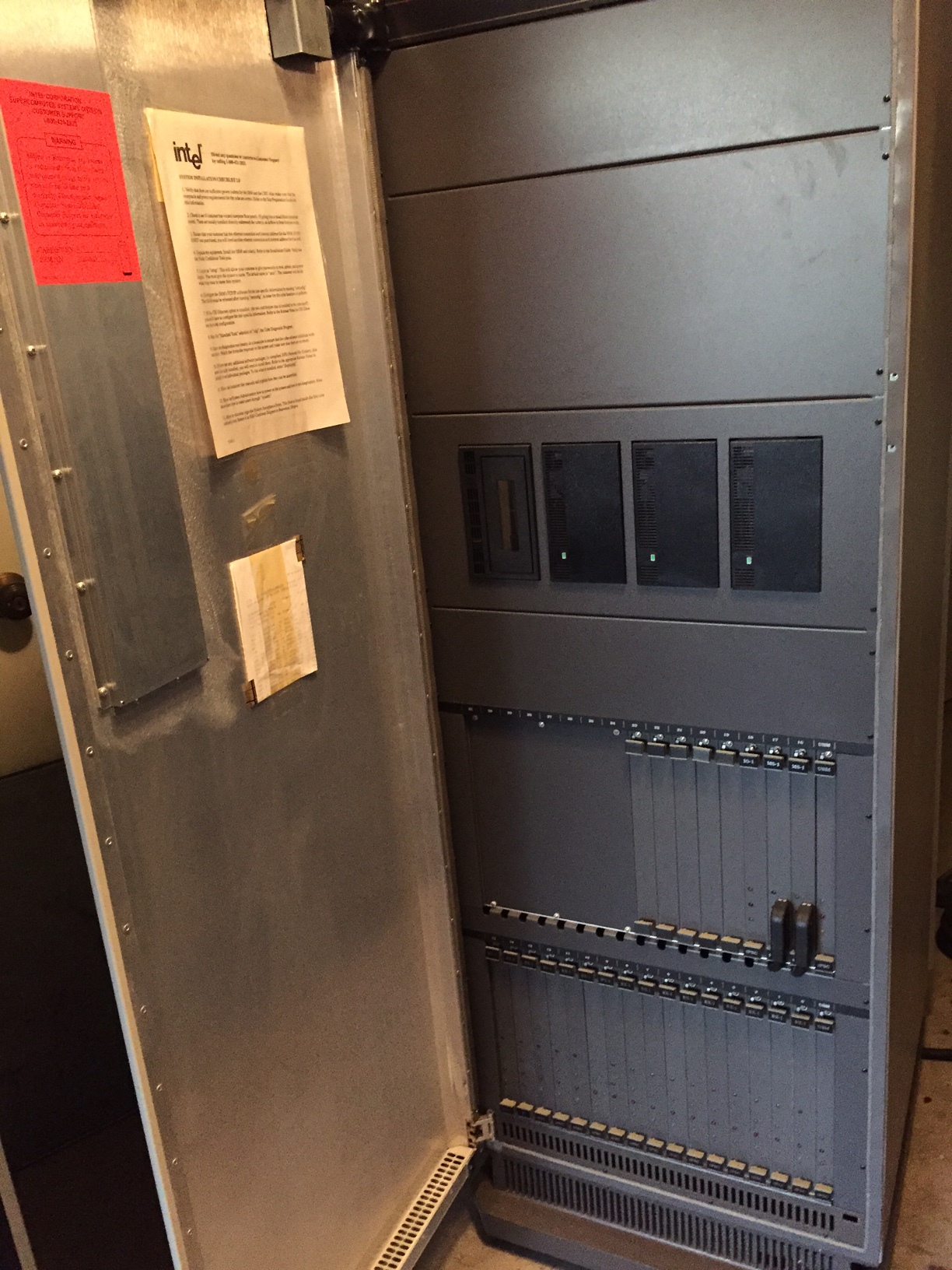

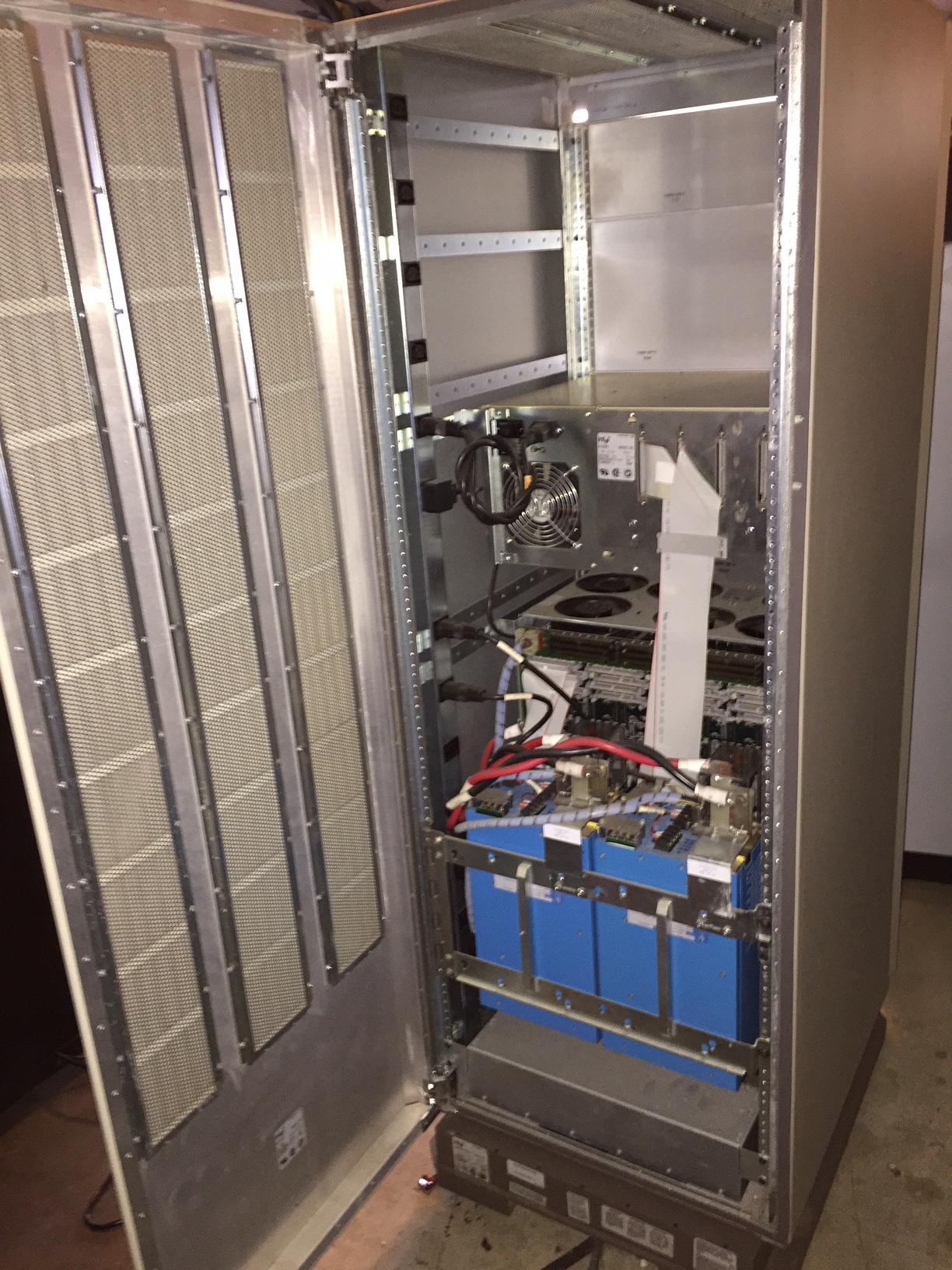

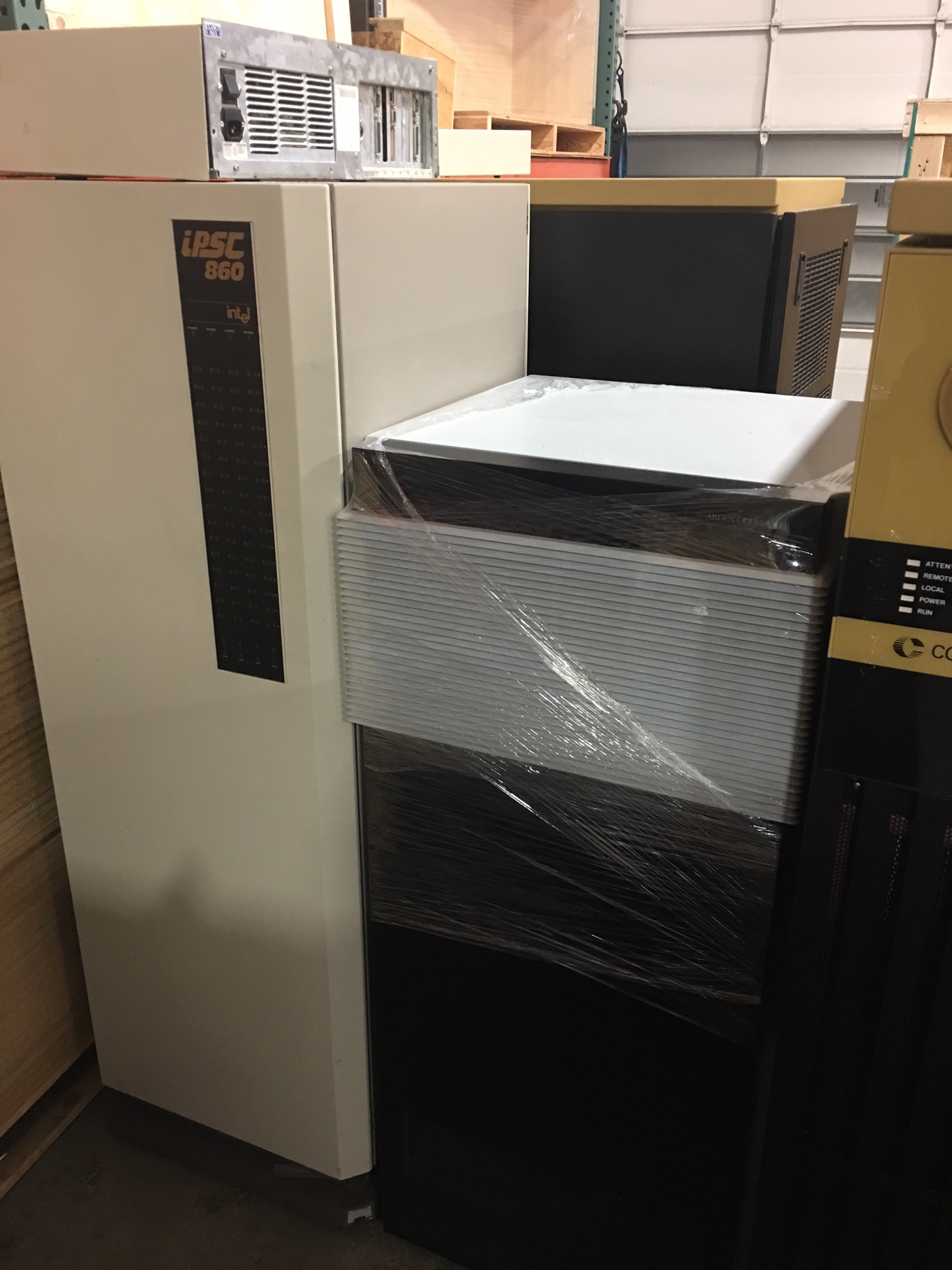

The Intel iPSC/860 is a parallel computer, using nodes using 40 MHz Intel 80860 CPU's in a hypercube configuration. From the pictures, I think this is the smallest configuration, with 16 node boards. The largest systems contain 128 CPU's.

The operating system that controls the nodes is called NX (node executive)

 There should have been a 386-based workstation called the SRM (System Resource Manager) with this system, but that appears to be missing.

2016-12-24 - Crates being made

Crates for the supercomputers (Four Supercomputers) are being made! The shipping company is enjoying a christmas/newyear break, and in January they'll crate up the computers.

Crates for the supercomputers (Four Supercomputers) are being made! The shipping company is enjoying a christmas/newyear break, and in January they'll crate up the computers.

2017-01-09 - Supercomputers ready to ship

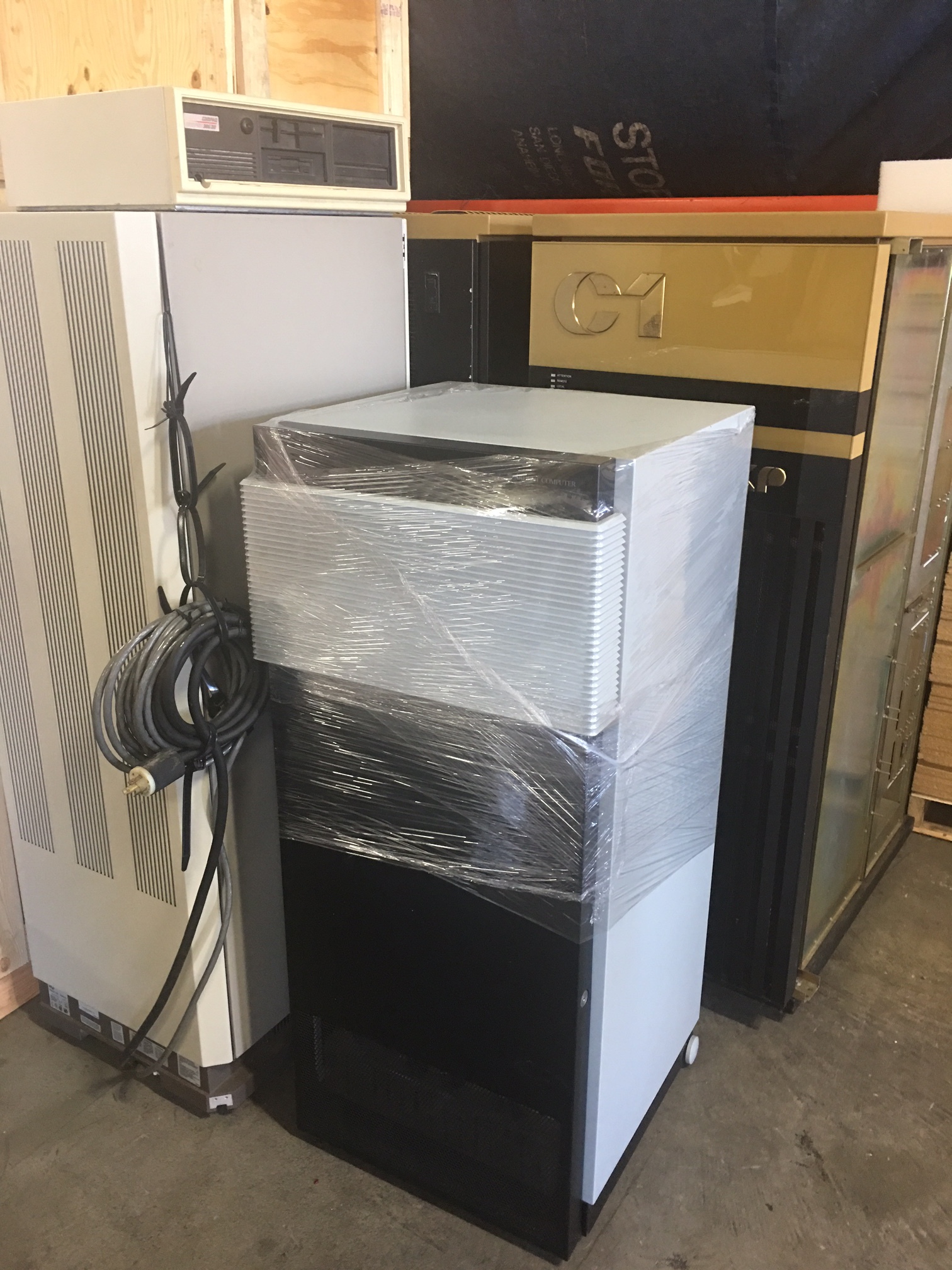

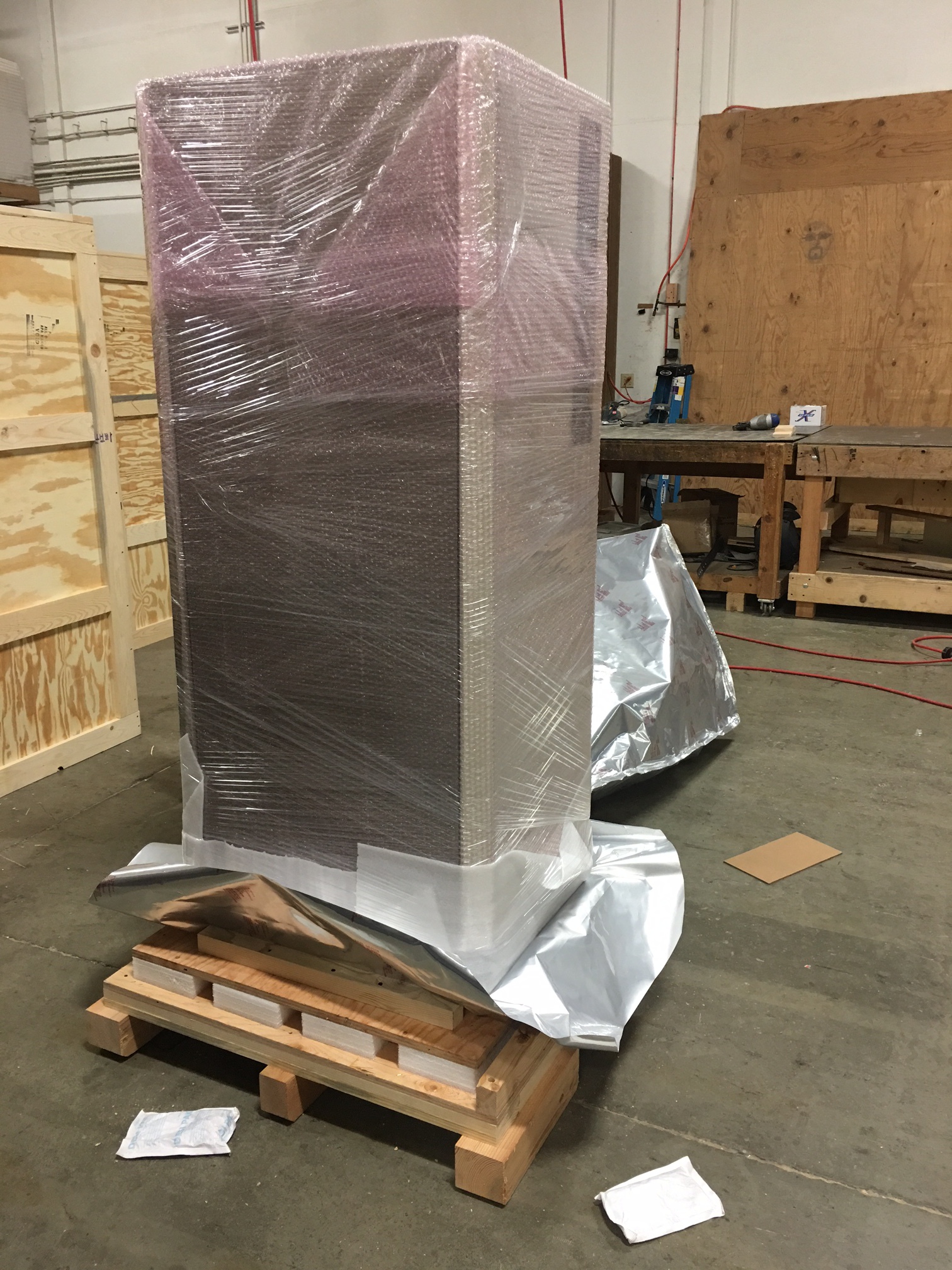

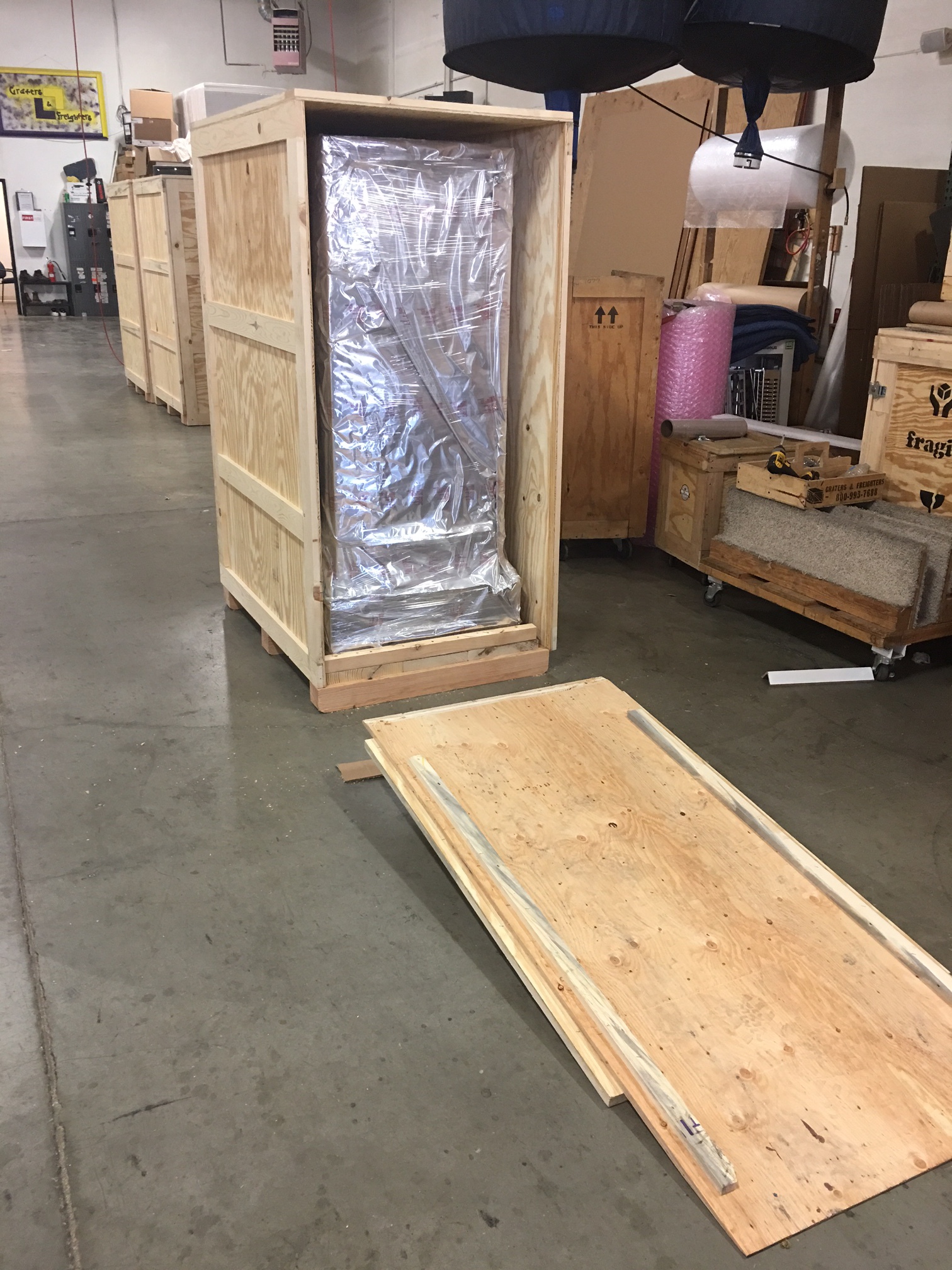

The Four Supercomputers have been crated up, and are ready to be shipped! About a month to go...

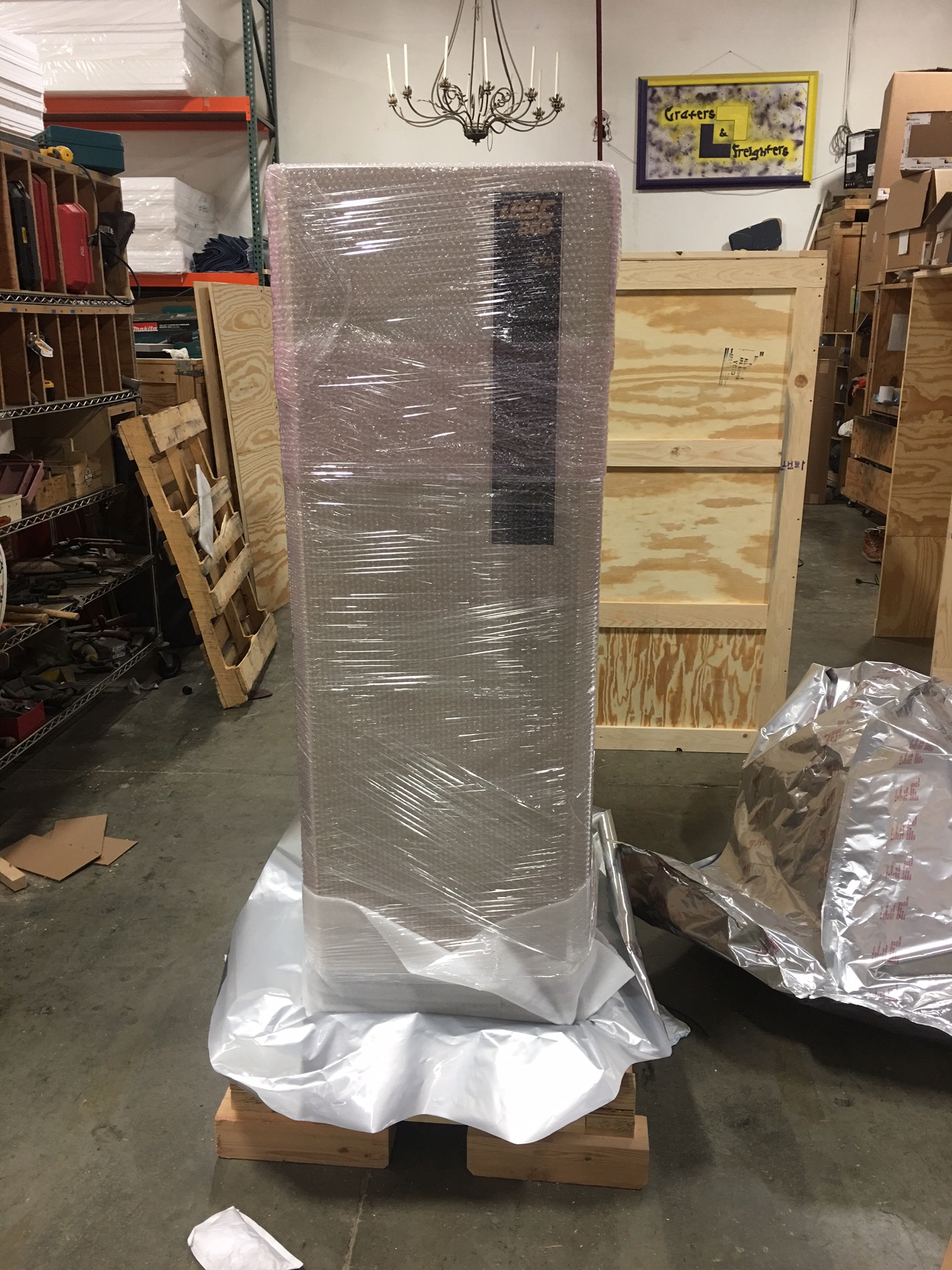

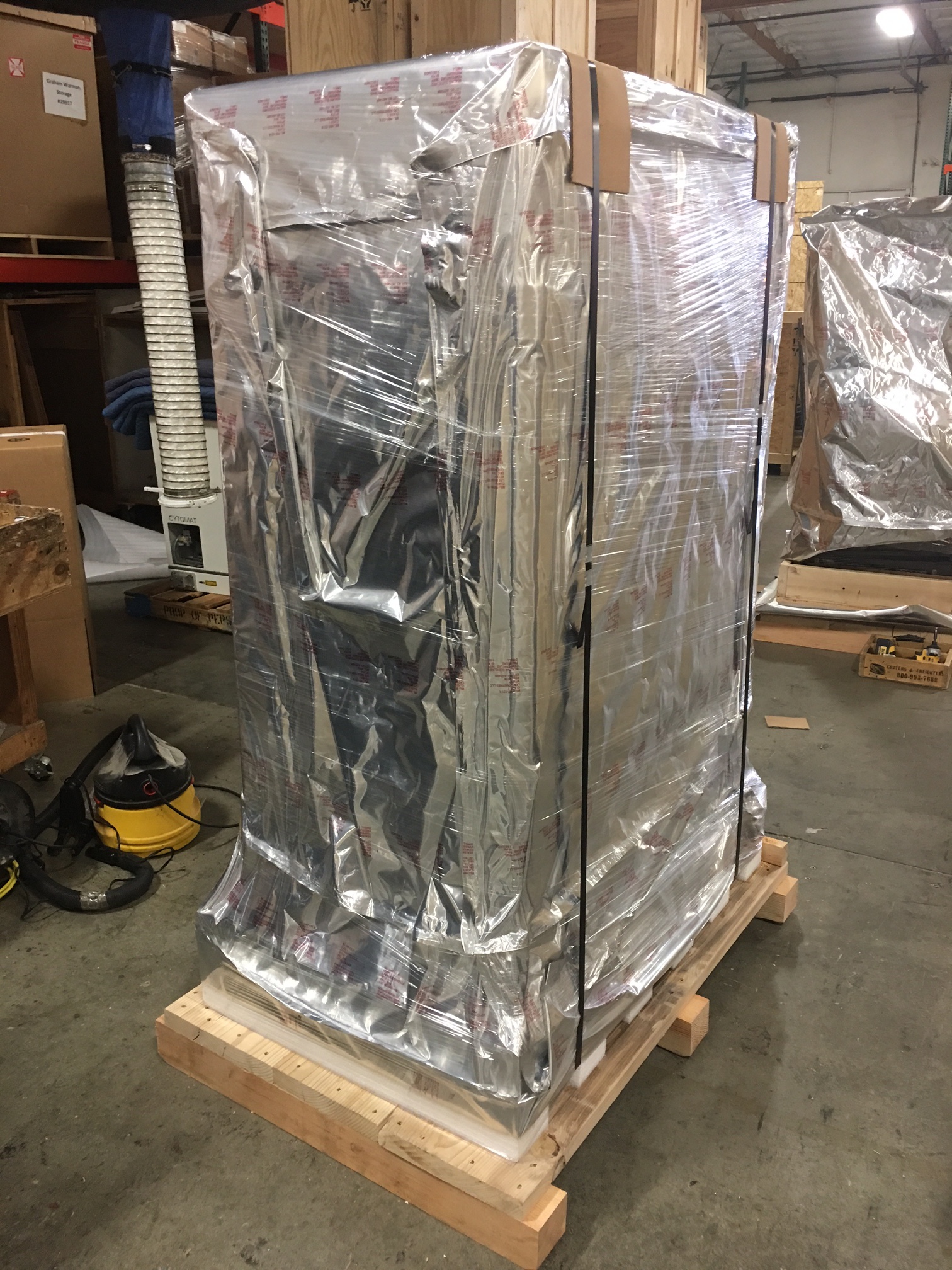

The Four Supercomputers have been crated up, and are ready to be shipped! It looks like the shipping company, Freighters and Craters of San Jose, have done a great job. About a month to go...

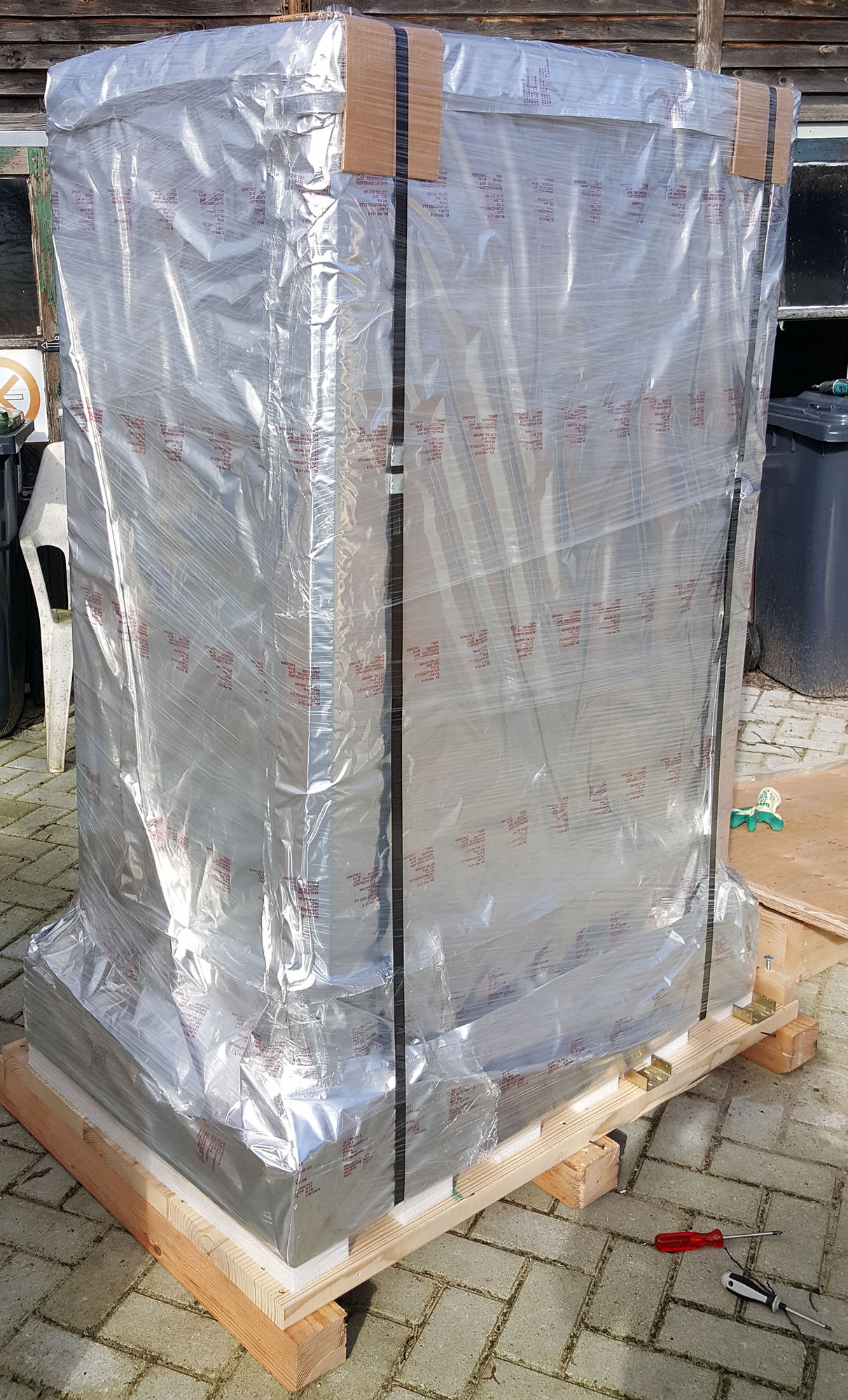

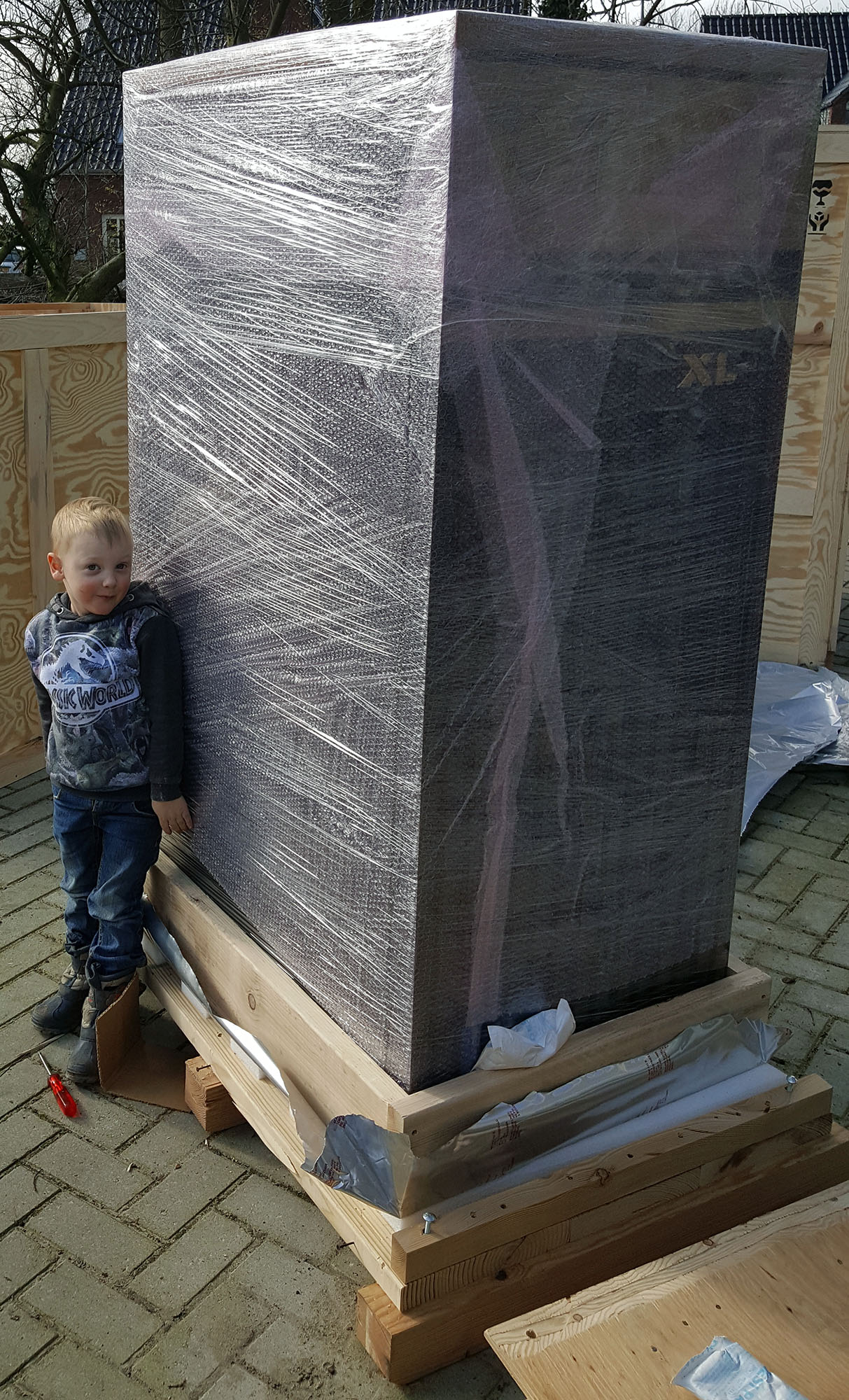

2017-03-11 - Supercomputers have arrived

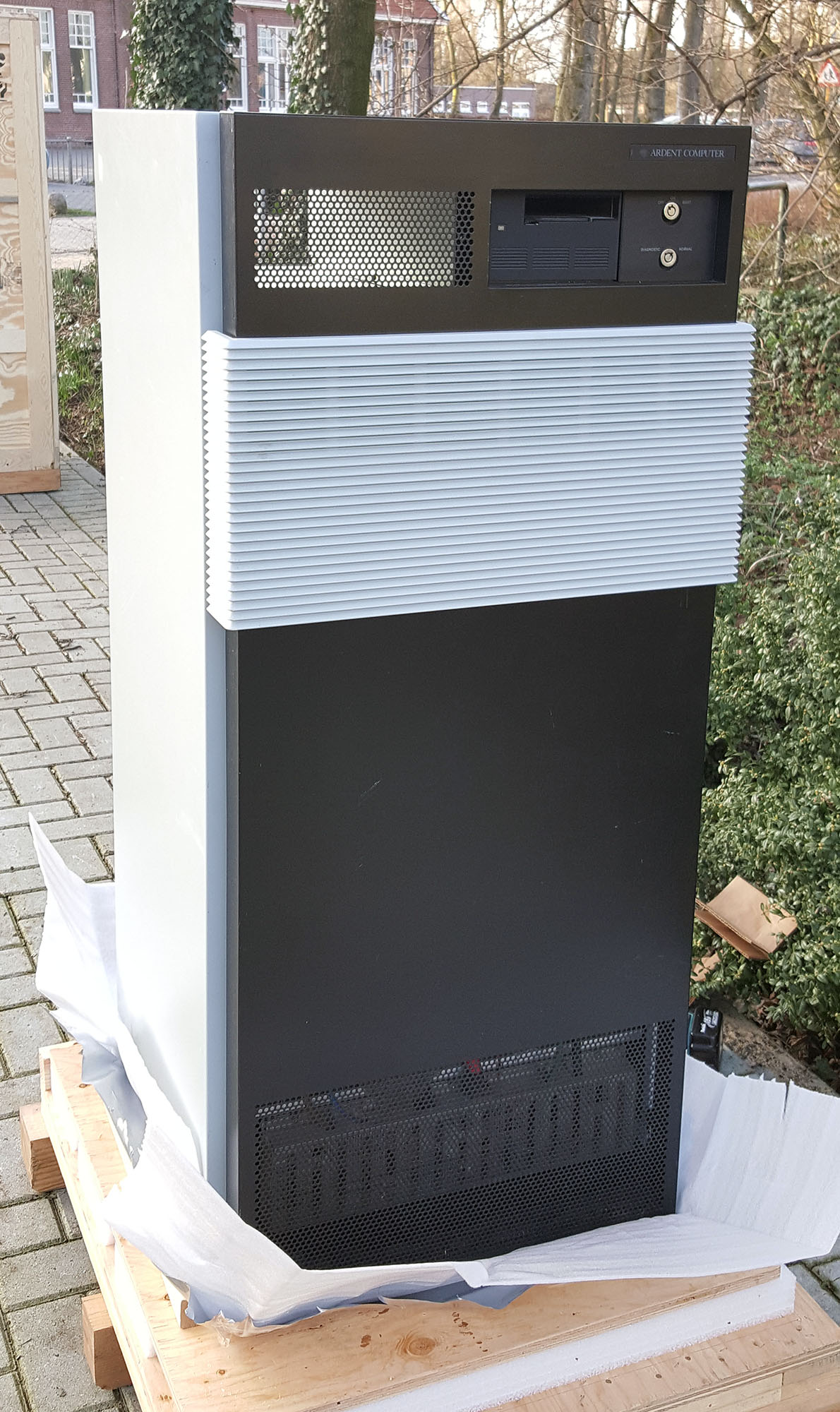

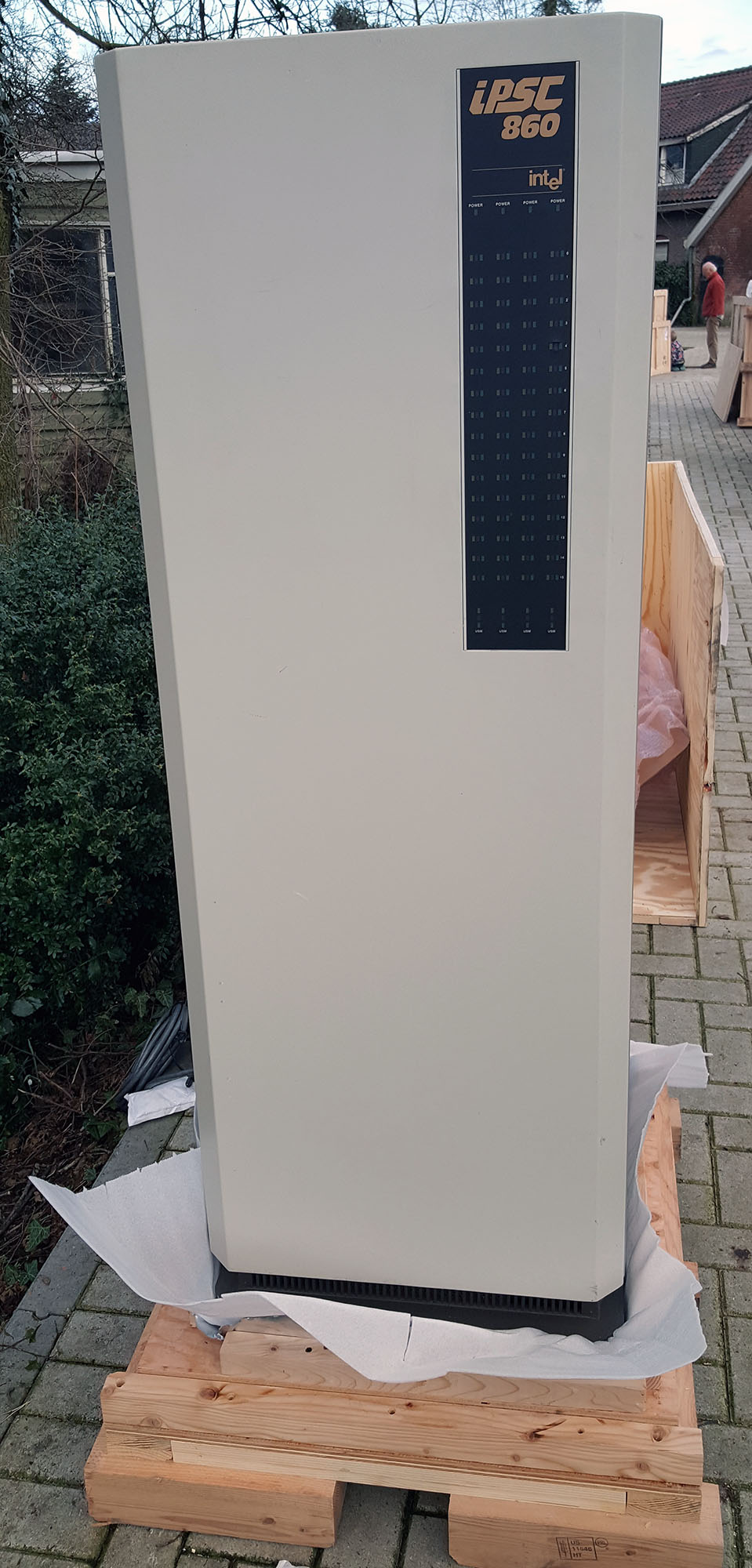

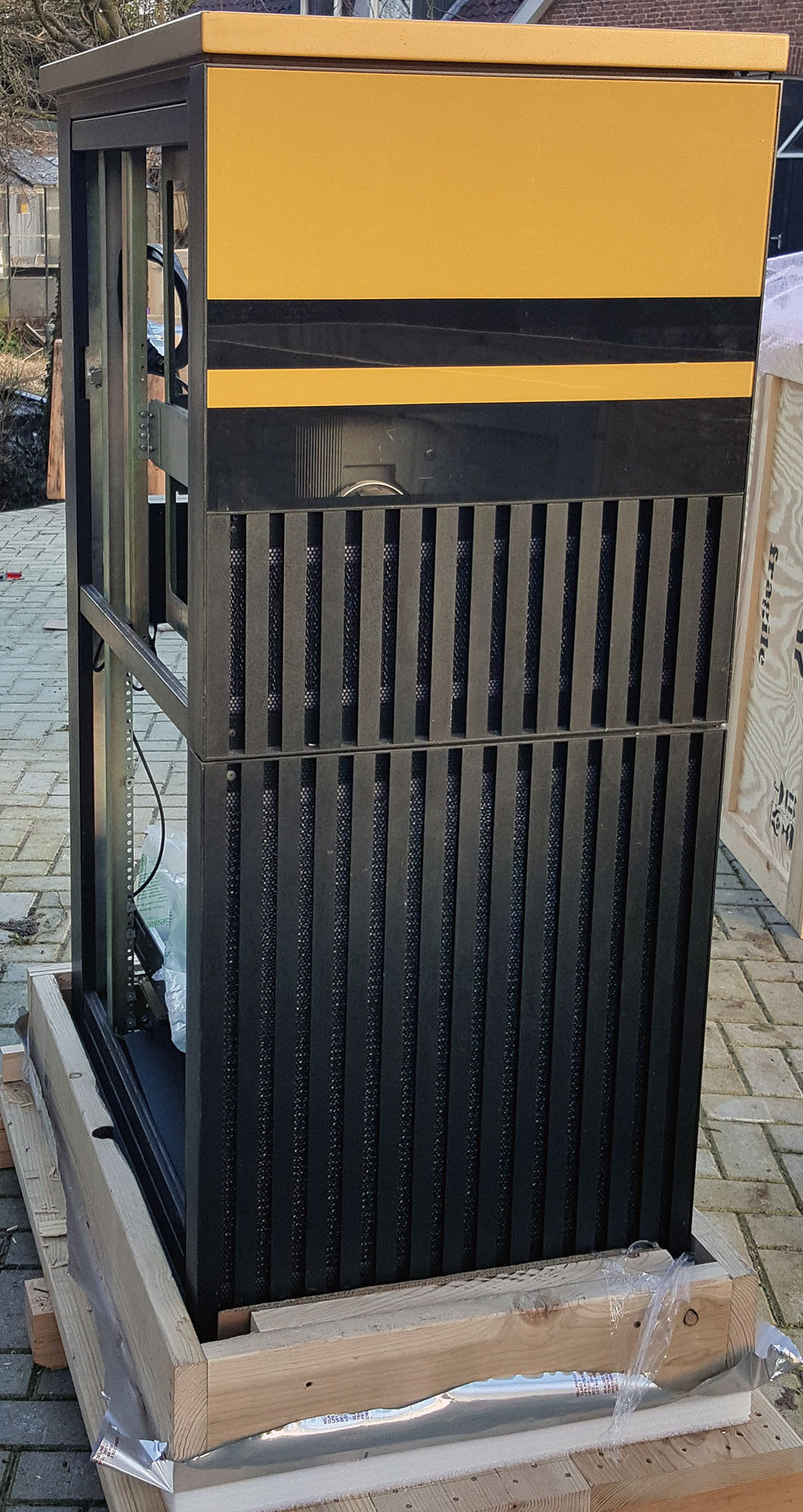

After a long journey, the supercomputers that were donated to me by a US professor have finally arrived on Dutch soil, and are now safely inside the barn. On Friday the 10th of March, around 2:30 pm, the truck showed up, and unloaded five large crates; about 4 hours later, I had all the cabinets and parts inside (with a little help from my father).

After a long journey, the supercomputers that were donated to me by a US professor have finally arrived on Dutch soil, and are now safely inside the barn. On Friday the 10th of March, around 2:30 pm, the truck showed up, and unloaded five large crates; about 4 hours later, I had all the cabinets and parts inside (with a little help from my father).Now that they're here, the work of figuring out how to safely power them on and bring them back to life can begin. And yes, the barn is getting a little small, so I really need to start giving some thought to that extension I want to build.

I'll start adding more details to the individual systems pages shortly, and I'll add articles about the projects to get these going again, but for now, here are some pictures of the systems arriving.
